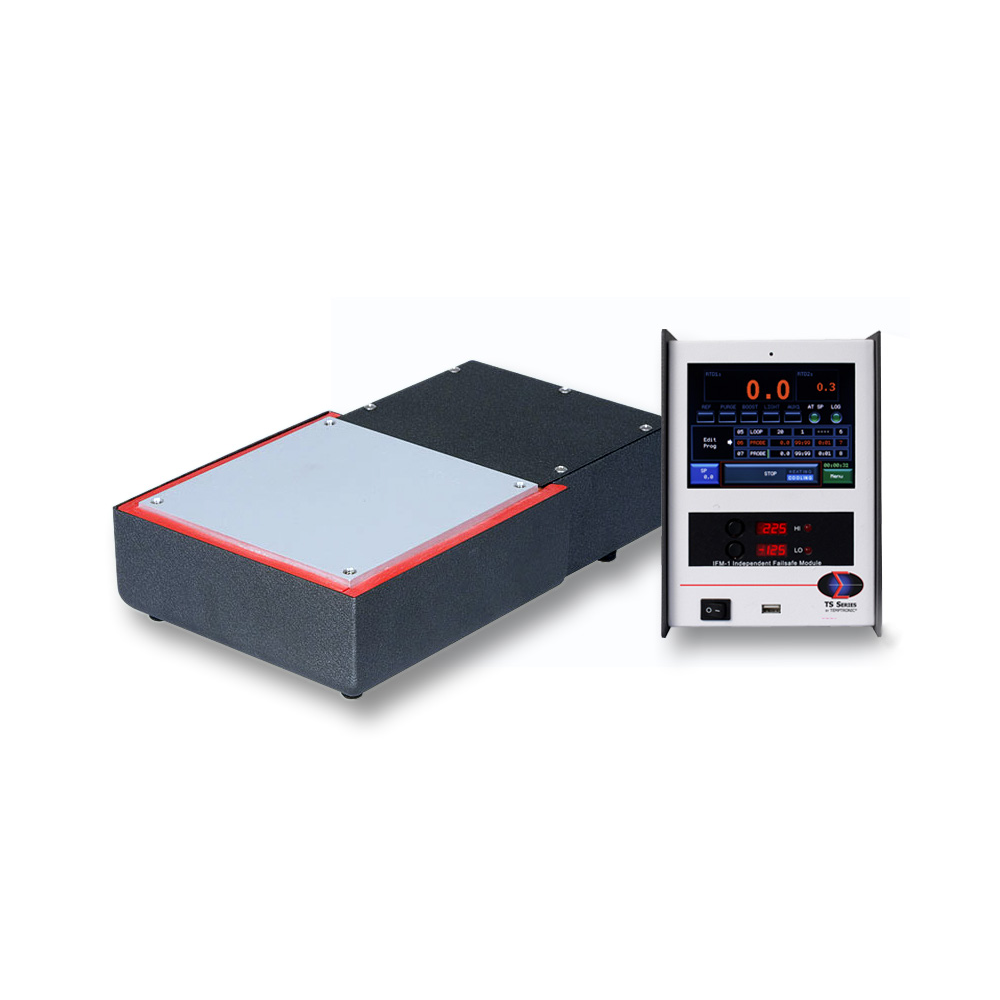

Sigma Systems TP294 Cryogenic Thermal Platform/Plate

Platform Specifications

Temperature Range:

-100°C to +200°C (LN2)

-60°C to +200°C (LCO2)

Temperature Transition Rate:

Cooling: 60°C-140°C/minute Typ

Heating: 21°C-47°C/minute Typ.

Workspace Dimensions: 6.75”W x 6.75”D (17.1cm x 17.1cm)

Workspace Surface Area: 45.6 in2 (294 cm2)

External Dimensions: 3.2”H x 7.8”W x 12.8”D (8.1cm x 19.8cm x 32.5cm)

Mounting Style: Benchtop / Optional: Shelf Rack Mounting

Coolant Type: LN2 (LCO2 optional, reduced low end temp)

Power Requirements (can be configured for CE): 100-120V / 50-60HZ / 1PH / 15A; 200-240V / 50-60HZ / 1PH / 13-16A

Controller Specifications

Temperature Measurement:

Range: -210°C to 680°C

Accuracy: ±1.0°C

Resolution: 0.1°C full scale

User Interface: 5.7” color touch-screen with temperature graphing and charting

Control Safety: Independent Fail-Safe Module (IFM) (optional) high and low temperature limits

Compliance: CE / RoHS / Designed to meet UL 61010

Diagnostics: Controller, chiller, & blower runtime hours; Valve activation counts; Controller enclosure temperature; System performance log

Operating Environment:Temperature: 10°C to 50°C; Humidity: 10% to 50%

Temperature Inputs: RTD (500 Ohm/2Wire) (100 Ohm/3 Wire); Thermocouple (type K)

Control Algorithms: Primary loop PID, Dual loop, settable DUT control

Communication Interfaces: Ethernet 10/100 / Telnet / HTML Web Server / USB-2.0 ; Optional: RS232 and IEEE-488 GPIB

Power Requirements: Voltage: 100 to 250 VAC; Frequency: 50/60 Hz; Current: up to 30A (application based)

Physical Dimensions: (TS1-4) 8.5”H x 6”W x 11.6”D (21.6cm x 15.2cm x 29.5cm); (TS5-8) 8.5”H x 8.0”W x 11.6”D (21.6cm x 20.3cm x 29.5cm)

Program Compatibility: Supports Sigma C, CC3, CC3.5, C4, and C5 functionality & command set

TS5-TS8 Options: Purge Set Point, Flow Meter, ON/OFF Solenoid Valve
