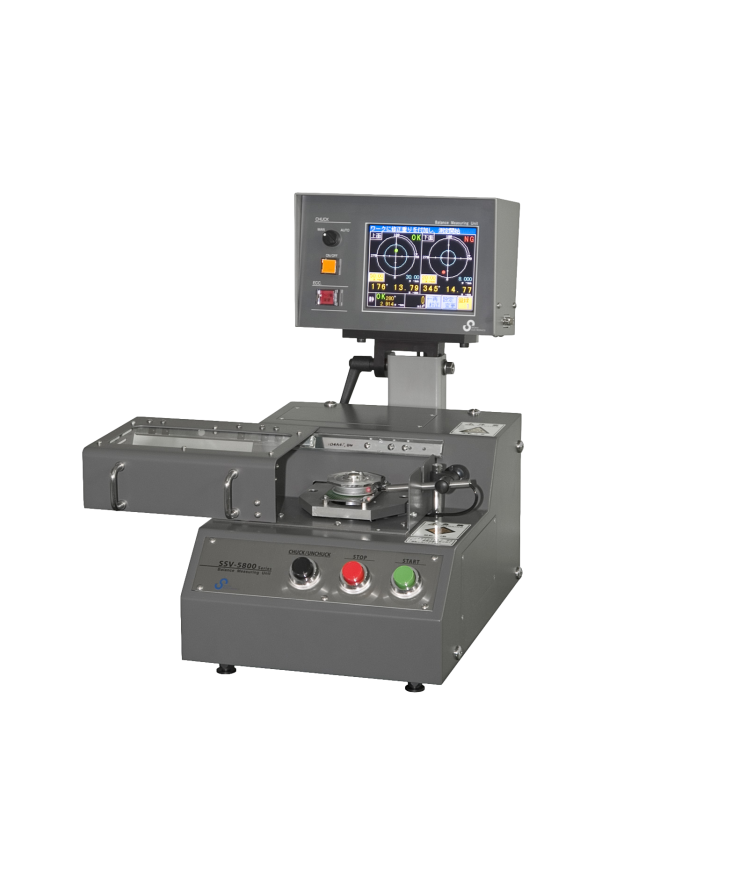

Sigma Electronics SSV2-58001A Vertical Balancing Machine for self-driven work (61,000/120,000 rpm; ø100mm; 100g)

Workpiece

Max. Mass: 100 g

Max. diameter: ø100mm

Mount table size: 110mm × 100mm

Mechanical unit

Balancing speed: 61,000min^-1/ 120,000min^-1

Bearing support system: Soft type

Measuring unit
Balancing plane: 1 and 2 planes

Eccentricity correction: Included

Min. Achievable Unbalance: Depend on bearing performance of workpiece

Graphic display: 5.7" TFT color LCD with touch screen

Min. unbalance indication: 0.01mg

Indication mode: Polar coordinates and (3 to 99) components of unbalance vector(add or remove of unbalance correction masses are selectable)

No. of stored work data: 50 data (No limitation when use with USB memory)

Data transfer: Measured data can be transferred to PC or stored USB memory -optional

Others

Power supply: Single-phase AC100V

Dimensions: 260(W) × 450(L) × 430(H)mm

Mass: Approx. 26kg

Option

Printer: Micro-dot printer

Chuck: Pneumatic three-jaw chuck

Special function: Measurable up to 400,000 min^-1
