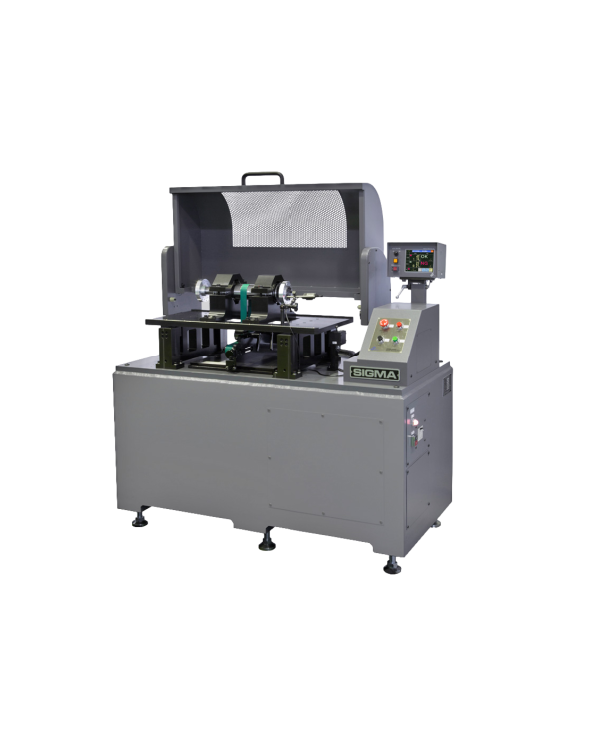

Sigma Electronics SSB-6080A Horizontal Balancing Machine (500 ~ 3,000rpm; ø195mm; 750W)

Workpiece

Max. Mass: 80k g

Max. rotor diameter: ø195mm

Diameter for belt drive: ø20 to ø125mm

Span across Bearings: 160 to 720mm

Mechanical unit

Belt drive system: Underslung

Motor: AC servo motor, 750W

Balancing speed: 500 to 3,000min-1 (Depending on outer diameter of workpiece)

Bearing support system: Soft type

Angle of unbalance index: Automatic indexing

Between bearings method: Roller bearing and/or V block bearing

Measuring unit
Min. Achievable Unbalance: Depend on rotating speed of workpiece

Balancing plane: 1 and 2

Graphic display: 5.7" TFT color LCD with touch screen

Min. unbalance indication: 0.01mg

Indication mode: Polar coordinates and (3 to 99) components of unbalance vector (add or remove of unbalance correction masses are selectable)

No. of stored work data: 50 data (No limitation when use with USB memory)

Judgment of measured result: Judgment with set limit value

Data transfer: Measured data can be transferred to PC or stored USB memory -optional

Others

Power supply: 3-phase AC200V　50/60Hz

Dimensions: 1,320(W) × 670(L) × 1,231(H)mm

Mass:Approx. 920kg (Including cover and base frame)
