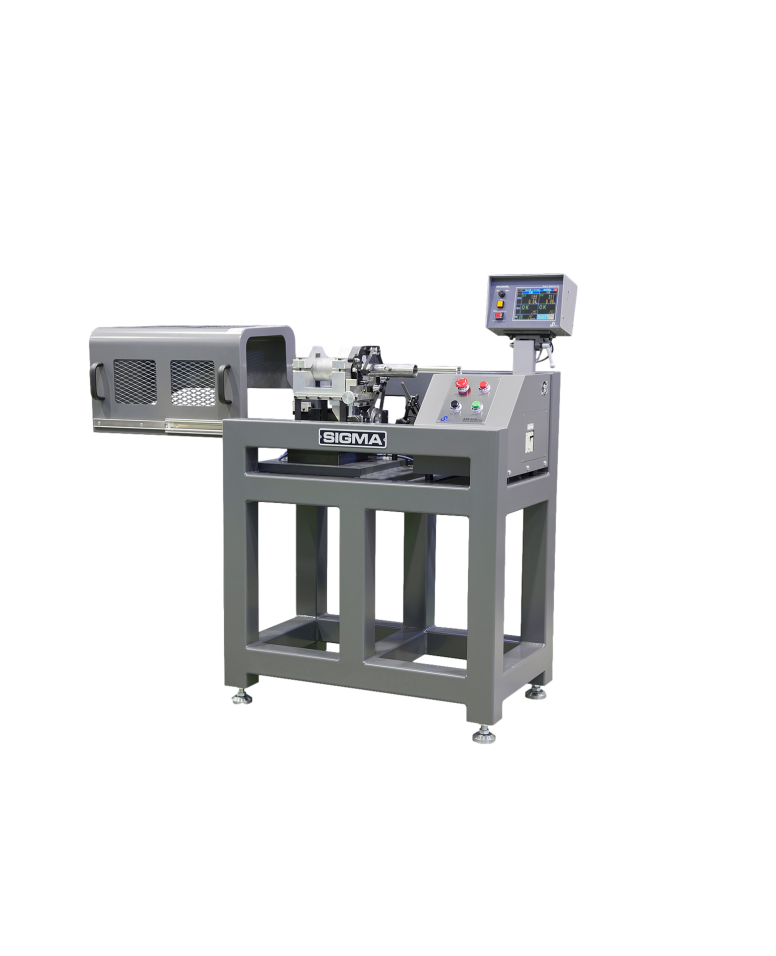

Sigma Electronics SSB-6010B Horizontal Balancing Machine (200 ~ 4,500rpm; ø160mm; 400W)

Workpiece

Max. Mass: 10.0kg

Span across Bearings: 160mm max.

Max. rotor length: 390mm

Mechanical unit

Belt drive system: Upward-Tangential

Motor: AC servo motor, 400W

Balancing speed: 200 to 4,500min^-1 (Depending on outer diameter of workpiece)

Bearing support system: Soft type

Angle of unbalance index: Automatic indexing

Between bearings method: V block bearing

Safety cover: Sliding door with LS -optional

Vibration sensor: Optical touchless displacement sensor

Rotation sensor: Fiber sensor

Measuring unit

Min. Achievable Unbalance: 0.1 µm

Balancing plane: 1 and 2

Balancing method: Multi-speed multi-plane, Fix-speed multi-plane

Angle of unbalance index: Automatic indexing

Graphic display: 5.7" TFT color LCD with touch screen

Min. unbalance indication: 0.01mg

Indication mode: Polar coordinates and (3 to 24) components of unbalance vector (add or remove of unbalance correction masses are selectable)

No. of stored work data: 30 data

Judgment of measured result: Judgment with set limit value

Data transfer: Measured data can be transferred to PC

Others

Power supply: 3-phase AC200V　50/60Hz

Dimensions: 810(W) × 625(L) × 1,200(H)mm

Mass: Approx. 200kg
