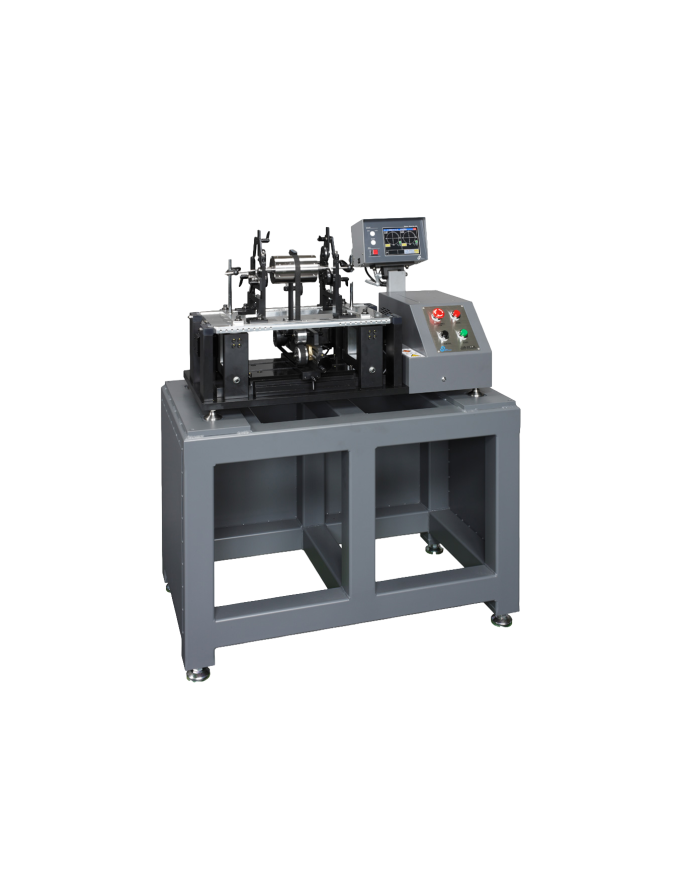

Sigma Electronics SSB-6010AF Horizontal Balancing Machine (600 ~ 4,000rpm; ø200mm; 750W)

Workpiece

Max. Mass: 10kg

Max. rotor diameter: ø200mm

Diameter for belt drive: ø20 to ø80mm

Journal diameter: ø10 to ø30mm

Span across Bearings: 40 to 300mm

Mechanical unit

Belt drive system: Underslung

Motor: AC servo motor, 750W

Balancing speed: 600 to 4,000min-1 (Depending on outer diameter of workpiece)

Bearing support system: Soft type (cradle type)

Angle of unbalance index: Automatic indexing

Between bearings method: Roller bearing and/or V block bearing

Measuring unit

Min. Achievable Unbalance: 0.1 µm

Balancing plane: 1 and 2

Graphic display: 5.7" TFT color LCD with touch screen

Min. unbalance indication: 0.01mg

Indication mode: Polar coordinates and (3 to 99) components of unbalance vector (add or remove of unbalance correction masses are selectable)

No. of stored work data: 50 data (No limitation when use with USB memory)

Judgment of measured result: Judgment with set limit value

Data transfer: Measured data can be transferred to PC or stored USB memory -optional

Others

Power supply: 3-phase AC200V　50/60Hz

Dimensions: 940(W) × 550(L) × 1,200(H)mm

Mass: Approx. 300kg (Including base frame)
