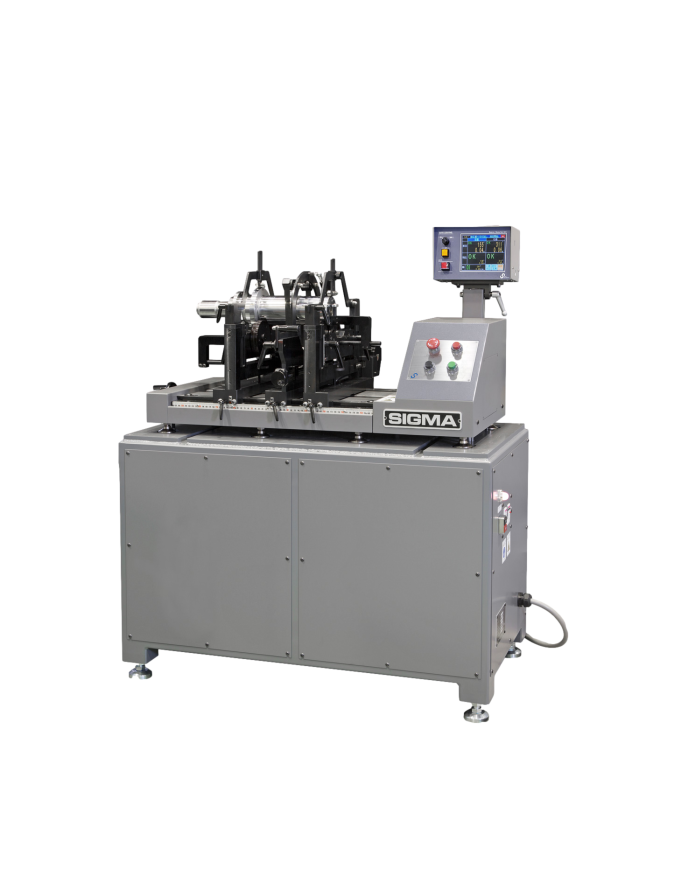

Sigma Electronics SSB-6010A Horizontal Balancing Machine (600 ~ 3,000rpm; ø150mm; 750W)

Workpiece

Max. Mass: 10kg

Max. rotor diameter: ø150mm

Diameter for belt drive: ø20 to ø80m

Journal diameter: ø10 to ø50mm

Span across Bearings: 50 to 350mm

Mechanical unit

Belt drive system: Upward-Tangential, Underslung, Downward-Tangential

Motor: AC servo motor, 750W

Balancing speed: 600 to 3,000min-1 (Depending on outer diameter of workpiece)

Bearing support system: Soft type

Angle of unbalance index: Automatic indexing

Between bearings method: Roller bearing and/or V block bearing

Measuring unit

Min. Achievable Unbalance: 0.1 µm

Balancing plane: 1 and 2

Graphic display: 5.7" TFT color LCD with touch screen

Min. unbalance indication: 0.01mg

Indication mode

Multi-speed Multi-plane, Fix-speed Multi-plane

Polar coordinates and (3 to 99) components of unbalance vector (add or remove of unbalance correction masses are selectable)

No. of stored work data: 50 data (No limitation when use with USB memory)

Judgment of measured result: Judgment with set limit value

Data transfer: Measured data can be transferred to PC or stored USB memory -optional

Others

Power supply: 3 phase AC200V　50/60Hz

Dimensions: 1,000(W) × 605(L) × 1,215(H)mm

Mass: Approx. 310kg (Including base frame)
