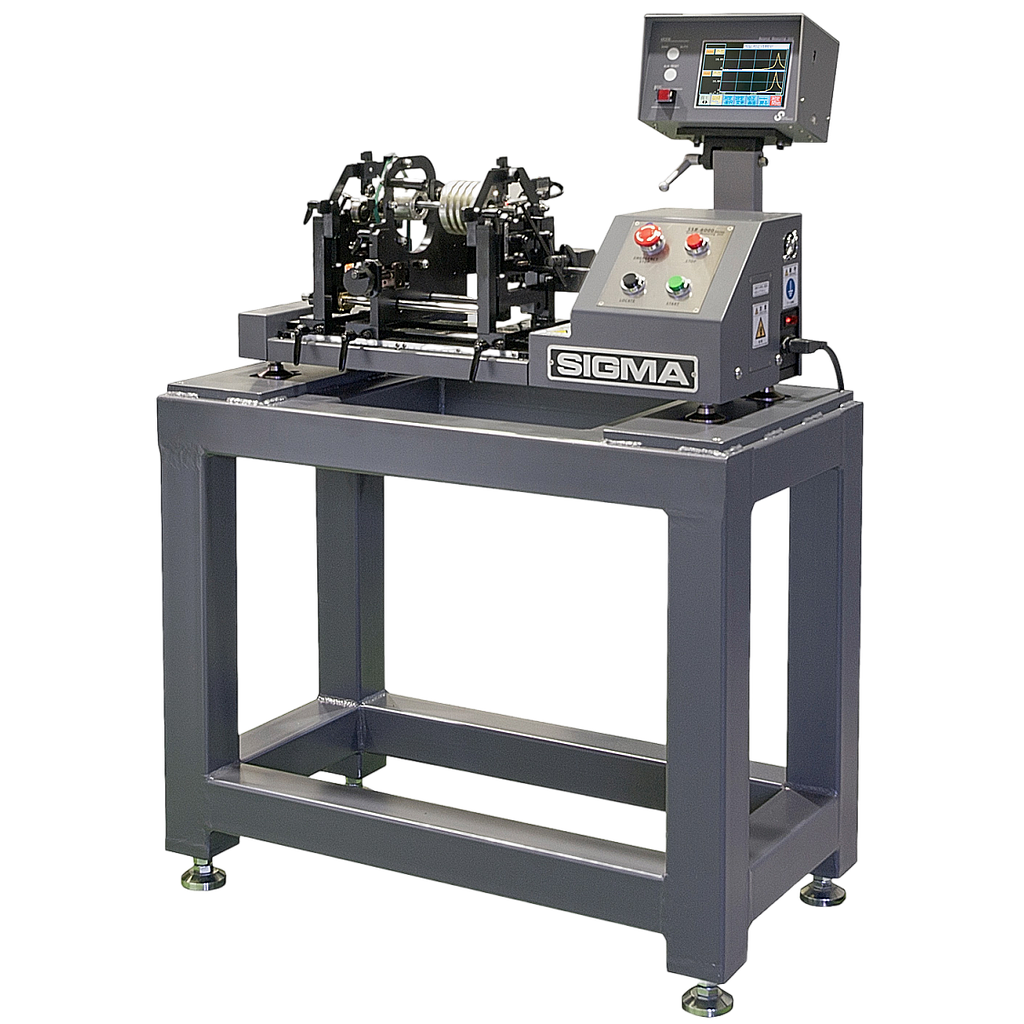

Sigma Electronics SSB-6001A Horizontal Balancing Machine (1,000 ~ 5,000rpm; ø100mm; 200W)

Workpiece

Max. Mass: 1kg

Max. rotor diameter: ø100mm

Diameter for belt drive: ø10 to ø50m

Journal diameter: ø4 to ø25mm

Span across Bearings: 35 to 200mm

Mechanical unit

Belt drive system: Upward-Tangential, Underslung, Downward-Tangential

Motor: AC servo motor, 200W

Balancing speed: 1,000 to 5,000min^-1 (Depending on outer diameter of workpiece)

Bearing support system: Soft type

Angle of unbalance index: Automatic indexing

Between bearings method: Roller bearing and/or V block bearing

Measuring unit

Min. Achievable Unbalance: 0.1 µm

Balancing plane: 1 and 2

Graphic display: 5.7" TFT color LCD with touch screen

Min. unbalance indication: 0.01mg

Indication mode

Multi-speed Multi-plane, Fix-speed Multi-plane

Polar coordinates and (3 to 99) components of unbalance vector (add or remove of unbalance correction masses are selectable)

No. of stored work data: 50 data (No limitation when use with USB memory)

Judgment of measured result: Judgment with set limit value

Data transfer: Measured data can be transferred to PC or stored USB memory -optional

Others

Power supply: single-phase AC100V　50/60Hz

Dimensions: 810(W) × 430(L) × 1,230(H)mm

Mass: Approx. 200kg (Including base frame)
