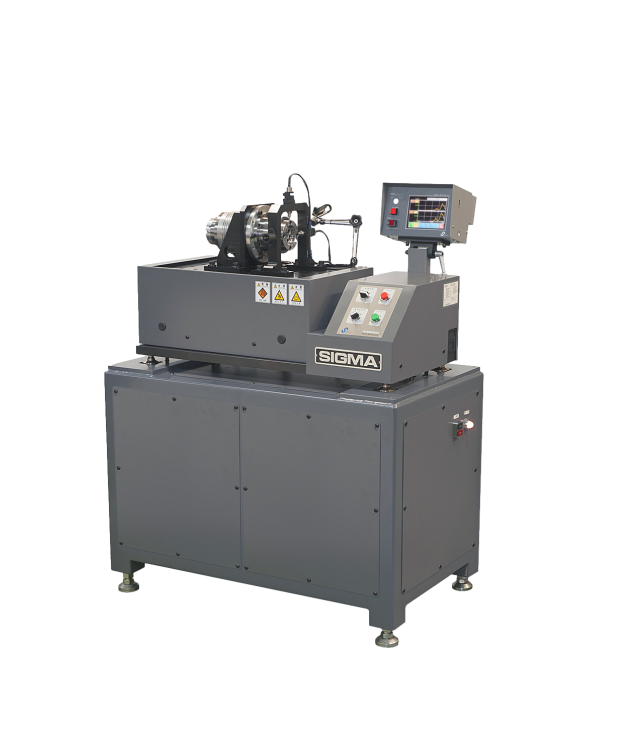

Sigma Electronics SSB-5850A Horizontal Balancing Machine (180 ~ 120,000rpm; 50kg)

Workpiece

Max. Mass: 50kg

Drive system: Self drive

Mechanical unit

Balancing speed: 180 to 120,000min-1

Bearing support system: Soft type (cradle type)

Measuring unit

Min. Achievable Unbalance: Depend on bearing of work

Balancing plane: 1 and 2

Graphic display: 5.7" TFT color LCD with touch screen

Min. unbalance indication: 0.001mg

Unbalance measuring mod: Multi-speed multi-plane, Fixed-speed multi-plane

Monitoring items: Vibration, temperature

bearing diagnostic function: Including FFT

Indication mode: Polar coordinates and (3 to 99) components of unbalance vector (add or remove of unbalance correction masses are selectable)

No. of stored work data 50 data (No limitation when use with USB memory)

Data transfer: Measured data can be transferred to PC or stored USB memory -optional

Others

Power supply: 3-phase AC200V　50/60Hz

Dimensions: 950(W) × 550(L) × 1,200(H)mm

Mass: Approx. 200kg

Option: Dynamic response evaluation with non-contact displacement sensor (Lissajous waveform)
