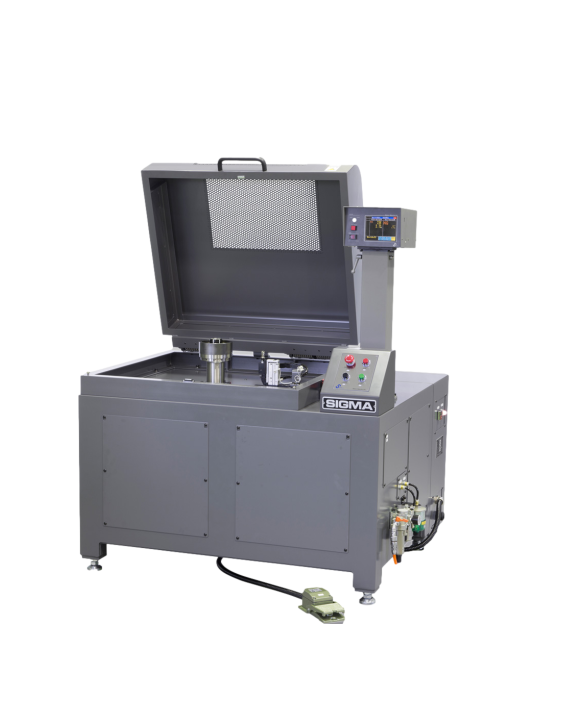

Sigma Electronics SHV-5130A Vertical Balancing Machine (500 ~ 1,500 rpm; ø800mm; 400W)

Workpiece

Max. Mass: 30kg

Max. Diameter: ø800mm

Mechanical unit

Motor: AC servo motor, 400kW

Chucking Adapter: Collect chuck

Balancing speed: 5,000 to 1,500 min-1

Bearing support system: Semi-hard type *Calibration by test weight is necessary .

Angle of unbalance index: Automatic indexing of spindle

Safety Cover: Manual up and down door (with torque hinge, interlock) -optional

Marking unit: Stamping marker by sir cylinder -optional

Vibration sensor: Optical contactless displacement sensor

Rotation sensor: Fiber sensor

Measuring unit

Balancing plane: 1 plane

Balancing method: Fixed-speed measuring

Eccentricity correction: Included

Min. Achievable Unbalance: 0.5µm (test piece: 30kg)

Graphic display: 5.7" TFT color LCD with touch screen

Indication mode: Polar coordinates and (3 to 24) components of unbalance vector (add or remove of unbalance correction masses are selectable)

No. of stored work data: 50 data

Judgment of measured result: Judgment with set limit value

Data transfer: Measured data can be transferred to PC by USB cable

Others

Power supply: 3 phase 200V ±10%

Dimensions: 1,307(W) × 1,310(L) x 1,489(H)mm

Mass: Approx. 970kg
