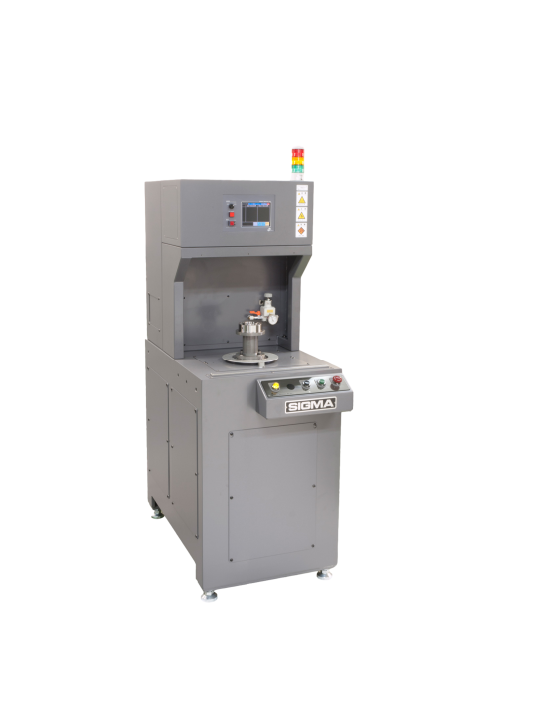

Sigma Electronics SHV-5105A Vertical 1-Plane Balancing Machine (1,000 ~ 2,000 rpm; ø150mm; 1kW)

Workpiece

Max. Mass: 5kg

Max. Diameter: ø150mm

Mechanical unit

Motor: AC servo motor, 1.0kW

Chucking Adapter: Manual fitting with screws

Balancing speed: 1,000 to 2,000 min-1

Bearing support system: Hard type

Measuring unit

Balancing plane: 1 plane

Min. Achievable Unbalance: 1.0µm

Graphic display: 5.7" TFT color LCD with touch screen

Min. unbalance indication: 0.01g

Indication mode: Polar coordinates and (3 to 99) components of unbalance vector (add or remove of unbalance correction masses are selectable)

No. of stored work data: 50 data (No limitation when use with USB memory)

Judgment of measured result: Judgment with set limit value

Data transfer: Measured data can be transferred to PC or stored USB memory -optional

Others

Power supply: Single-phase AC100V

Dimensions: 550(W) x 970(L) x 1681(H)mm

Mass: Approx. 480kg
