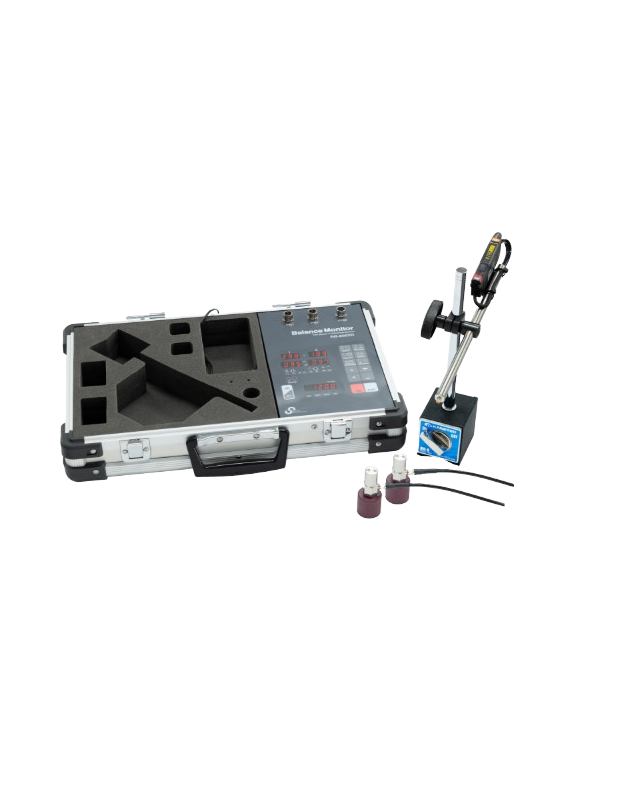

Sigma Electronics SB-8002R Balance Monitor (180~ 61000 rpm, 2CH)

【Measurement range】

Applicable Rotors: Rigid Rotor

Balancing Speed: 180min^–1 〜 61,000min^–1

Resolution of rotational speed display: 1 min^–1

Resolution of vibration: 0.001µm

Number of vibration input channel: 2ch

Measuring method: Fixed-speed method

Number of correction plane: 1 to 2

【Correction method】

Polar coordinates: 0°〜359° (angle resolution：1°)

Components of unbalance vector: 3 to 50

Correction weight: Add / Remove

Vibration analysis function

Unbalance Vibration Analysis: Time-series record of unbalanced vibration vectors

Harmonic vibration analysis: Analysis of harmonic components

FFT analyzer: -

OverAll Vibrometer: -

Time waveform: -

【Others】

USB communication port: -

microSD card slot: -

Display: 7-segment LED (Angle position, vibration displacement, revolution)

LED lamp (Measurement condition, Operation display)

Language: Japanese

Power supply: AC adapter: AC100 to 240V ±10% 50/60Hz

Environment

Temperature：5〜40°, Humidity：20〜80％RH（Non-condensing）

Dimension of measuring unit: 385（W）× 120（D）× 255（H）mm（integrated in trank case）

Mass of measuring unit: Approx. 5.0kg（with main unit and all accessories）
