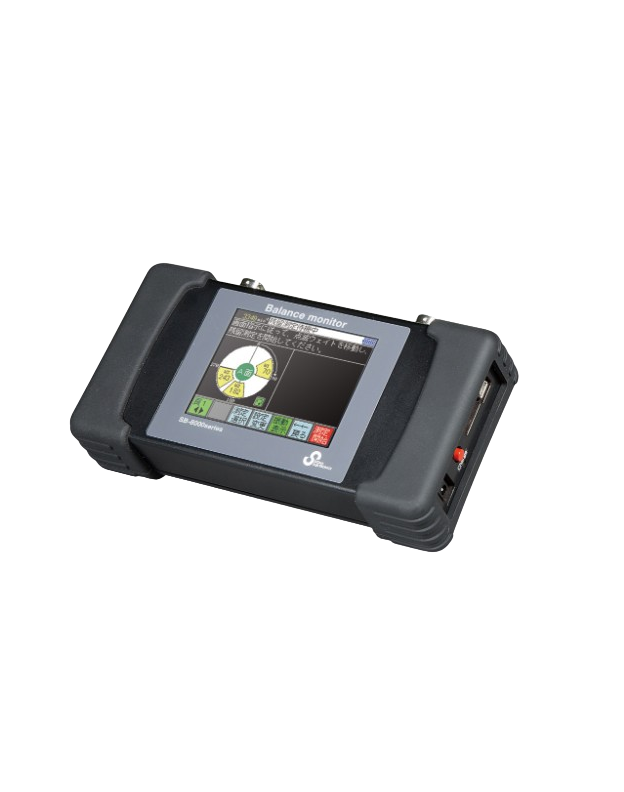

Sigma Electronics SB-8001GB Balance Monitor (180~ 61000 rpm, 1CH)

Measurement range

Applicable Rotors: Grinding wheel (precision grinder)

Balancing Speed: 180min^–1 〜 61,000min^–1

Resolution of rotational speed display: 1 min^–1

Resolution of vibration: 0.001µm

Number of vibration input channel: 1ch

Measuring method: Fixed-speed method

Number of correction plane: 1

Correction method

Unbalance correction: Single plane balancing with arrangement of 2 or 3 balance weights on the circumference

Display:  3.5" TFT color LCD

Dialog with touch screen, with Touch pen

Language: Japanese / English switchable

Power supply:

AC adapter: AC100 to 240V ±10% 50/60Hz

Rechargeable battery: Li-Ion battery(Operating time: up to 3 hours)

Environment: Temperature：10〜30°C, Humidity：20〜80％RH（Non-condensing）

Dimension of measuring unit: 180（W）× 100（D）× 45（H）mm

Mass of measuring unit: Approx. 0.35kg

Dimension of trank case: 385（W）× 120（D）× 255（H）mm

Total mass (with main unit and all accessories): Approx. 4.3kg
