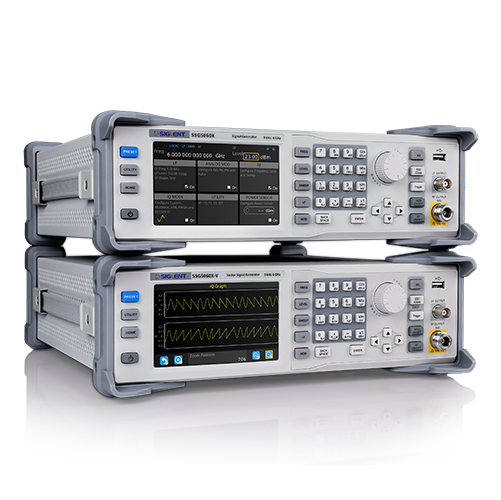

SIGLENT SSG5040X RF Signal Generator (CW MODE 9kHz~4GHz; 0.001Hz)

Frequency range:

- CW MODE: 9kHz-4GHz

Frequency resolution: 0.001Hz

Amplitude resolution: 0.01dB

Max output power: +26dBm (typ.)

Phase noise: -120dBc/Hz @1GHz, offset 20kHz (typ.)

Display: 5 inch capacitance touch screen, RGB(800*480)

Standard accessories

Quick-start

USB-cable

Calibration-certificate

Power cord

Optional accessories

Pulse train generator: SSG5000X-PT

Rack mount kit: SSG-RMK

USB-GPIB adapter: USB-GPIB

Upgrade 4GHz to 6GHz: SSG5000X_F60

Upgrade IQ bandwidth from 75MHz to 150MHz: SSG5000XV_B150

Precision Frequency Reference: 10M_OCXO_L [1]
