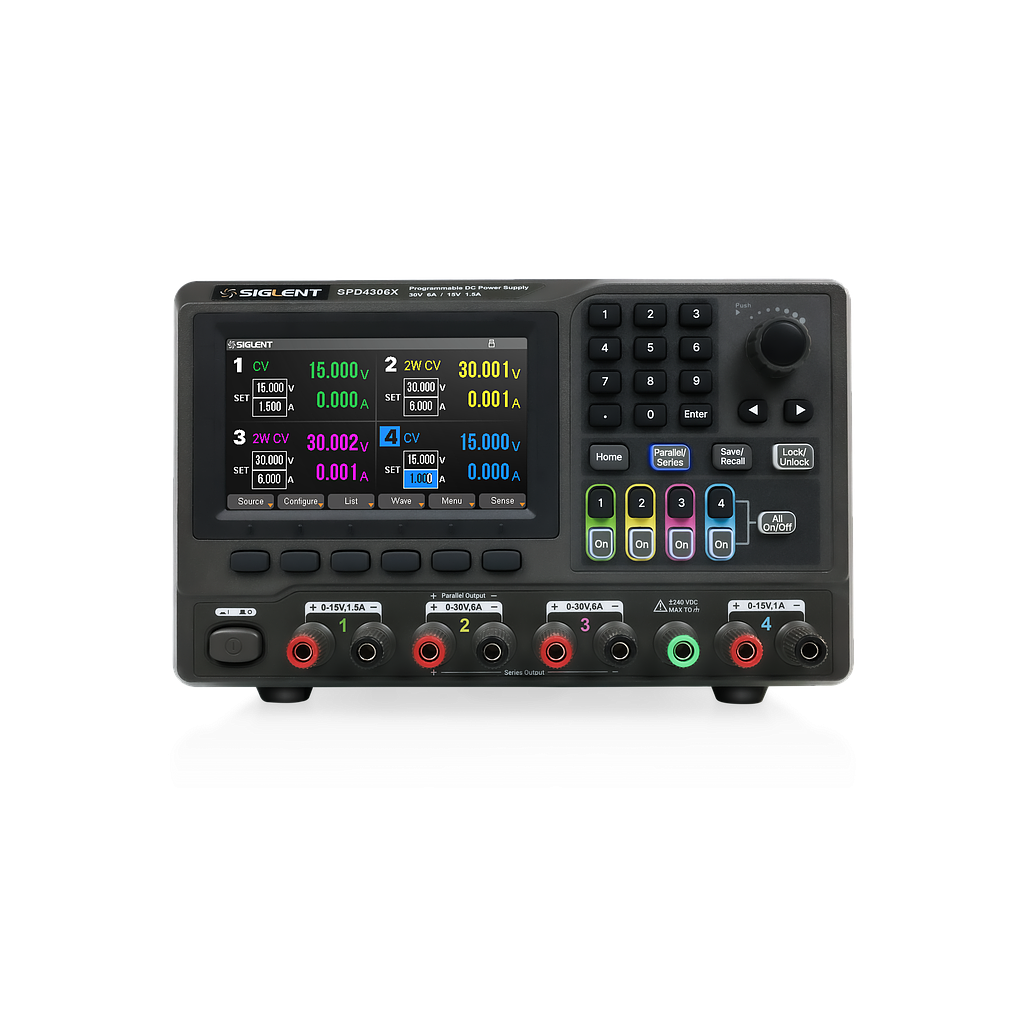

SIGLENT SPD4306X Programmable Linear DC Power Supply (4CH; 400W; 30V/6A)

Output channel: 4

Resolution: 1mV/1mA

CH1 Output : 15V/1.5A

CH2 Output : 30V/6A

CH3 Output : 30V/6A

CH4 Output : 15V/1A

CH2, CH3 Series voltage/ current : 60V/6A

CH2, CH3 Parallel voltage/ currentl: 30A/12A

Output power: 400W

Voltage programming accuracy: ±(0.03% of reading +10)mV

Voltage readback accuracy: ±(0.03% of reading +10)mA

Current programming accuracy: ±(0.3% of reading +10)mV

Current readback accuracy: ±(0.3% of reading +10)mA

Line/Load regulation (CV): 0.01% +2mV

Ripple and noise (CV): 5mV/ 350uV

Line/Load regulation (CC): 0.1%+3mA

Ripple and noise (CC): ≤2mArms

Line regulation (Series): 0.01% +5mV

Load regulation (Series): <150mV

Line regulation (Parallel): 0.01% +5mV

Load regulation (Parallel): 0.01% +50mV

Series/parallel/independent output: √

Timer display mode: √

Waveform display mode: √

Protection: OVP/OCP

Remote voltage compensation sense function: √

List Operation: Support List coupling function. In addition to setting up a single channel, you can also perform inter-channel coupling to meet the stable and controllable power-up sequence

Save/Recall: 8

Interface Capability: USB Device, USB Host, LAN, GPIB

Web Control: Web Server

Calibration: Calibrated before leaving the factory or Calibrated by user's instructions. (Two data types)

Display: 4.3' TFT-LCD (480*272)

Dimensions (WxHxD)mm: 221 x 133 x 360

Weight: 12kg
