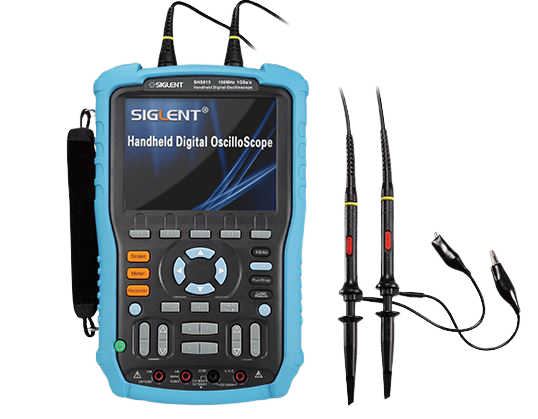

Siglent SHS810 Handheld Oscilloscope (100Mhz, 2CH, 1GSa/s)

Scope

Type

SHS810

Bandwidth

100MHz

Rise Time

≤3.5ns

Input Impedance

1MΩ±2％, 18pf±3pf

Real Time Sampling Rate

Single Channel: 1GSa/s,
Double Channels: 500MSa/s

Equivalent Sampling Rate

50GSa/s

Memory Depth

2Mpts

Time Base Range

5 ns/ div – 50s/ div

2.5 ns/ div – 50s/ div

Scan Range

100ms/ div ～ 50s/ div

Vertical Sensitivity

2mV/div – 100V/div(1-2-5 step)

Vertical Resolution

8 bits

Trigger Types

Edge, Pulse, Video, Slope, Alternative

Frequency Counter

6 bits

Connection

USB Device, USB Host

Math

+, -, * , /, FFT

Oscilloscope Trend Plot

800K points

Multimeter Specification

Display

6000

Item

Range

Accuracy

DC Voltage

60mV - 1000V

±1%±15digit

AC Voltage

60mV –750V

±1%±15digit

DC Current

60mV -10A

±1%±5digit

AC Current

60mV -10A

±1%±5digit

Capacitance

40.00nF

±3%±10digit

400.0nF-400.0uF

±4%±5digit

Resistance

600Ω - 60MΩ

±1%±5digit

Continuity buzzer

<50Ω

Diode

0V～2.0V

Trend plot

1.2M points

Recorder

7M pionts

Measuring mode

Manual/Auto

General Feature

Display

5.7 inches color TFT-LCD, 320*234

Power Supply

Charging/Battery

Power mode

Lithium battery: 7.4V 5000mAh, Battery lasts 5 hours; DC adapter, 100-240V 50/60Hz input, 9V 4A output

Weight

1.5Kg

Dimension

163.2mm×259.5mm×53.3mm

Accessories

Two passive probes, multimeter pen USB data cable, DC adapter, manual, CD.
