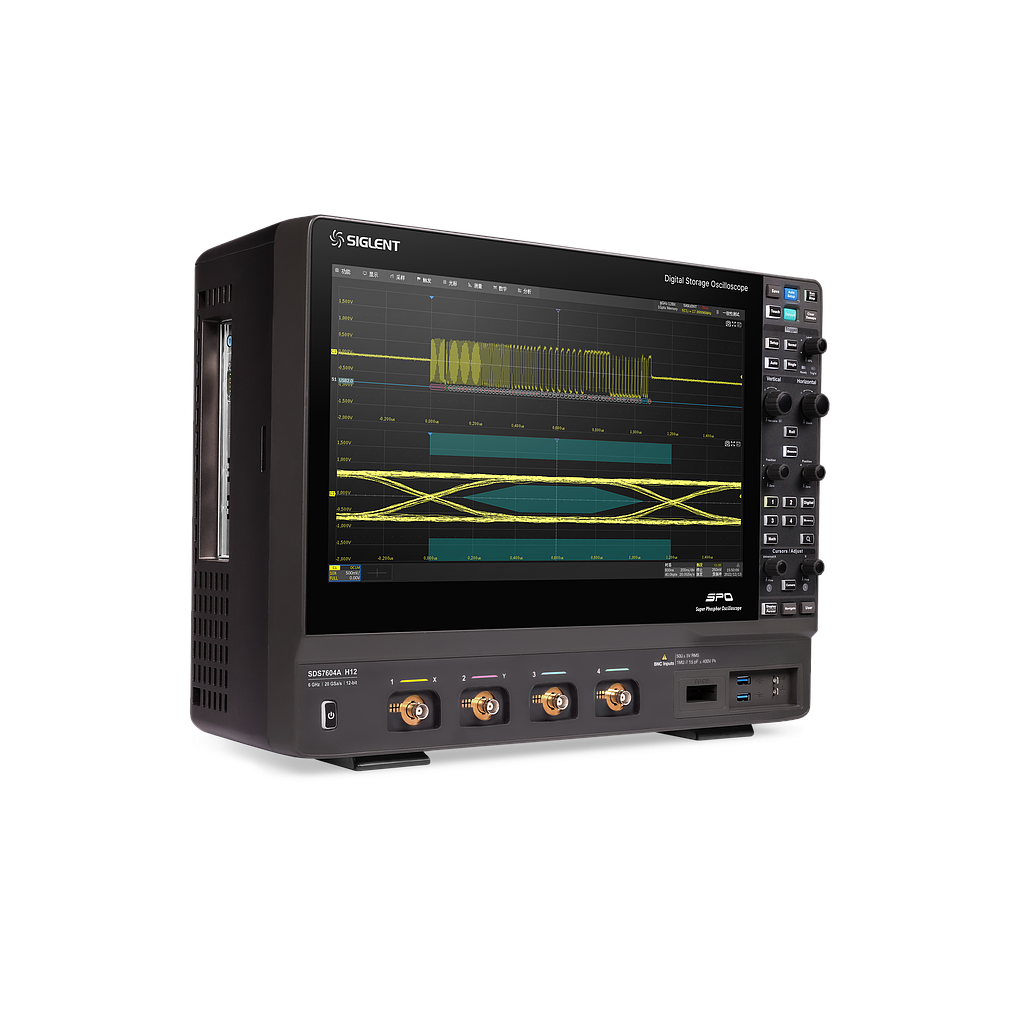

SIGLENT SDS7604A H12 Digital Storage Oscilloscope (6 GHz, 20 GSa/s, 4-CH)

Analog channels: 4 + EXT

Bandwidth: 6 GHz

Sample rate (Max.): 20 GSa/s (dual-channel); 10 GSa/s (3 or 4 channels)

Vertical Resolution: 12-bit; Up to 16-bit in ERES mode

Memory depth (Max.): Standard: 500 Mpts/ch; Optional: 1 Gpts/ch in dual-channel mode

Waveform capture rate (Max.): 1,000,000 wfm/s

Trigger type: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial

Serial trigger and decode:

+ Standard: I2C, SPI, UART, CAN, LIN

+ Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC429, USB 2.0 (decode only)

Measurement: 50+ parameters, statistics, histogram, trend, and track supported

Math:

+ 4 traces

+ 32 Mpts FFT, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, e^x; 10^x , ln, lg, Interpolation, MaxHold, MinHold, ERES, Average, Filter. Supports formula editor

Data analysis: Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot and Power Analysis, Eye/Jitter Analysis, SignalScan, Compliance Test (USB 2.0, 100Base-TX, 1000Base-T, 100Base-T1, 1000Base-T1, MIPI-DPHY)

Digital channel: 16-channel; maximum sample rate up to 1 GSa/s; record length up to 50 Mpts

Waveform generator (optional): Builit-in, frequency up to 50 MHz, 125 MSa/s sample rate, 16 kpts waveform memory

Processor System: Intel Core i3-8100 or better, 32 GB memory, 250 GB storage, Linux operating system

I/O

+ I/O: 4x USB Host 3.1 Gen 1, 2x USB 3.0 Host, USB 2.0 Device (USBTMC), 2x 1000M LAN (VXI-11+SCPI,

+ Telnet (5024)+SCPI, Socket (5025)+SCPI, LXI, WebServer)

+ Display: 1x DVI-D: up to 1920x1200 @ 60Hz; 1x DP 1.2: up to 4096x2304 @ 60Hz; 1x HDMI 1.4: up to 4096x2160 @ 60Hz

+ Audio: Mic input, Audio Output

+ Others: External Trigger In, Aux Out (TRIG OUT, PASS/FAIL), 10 MHz In, 10 MHz Out

Probe (Standard): 500 MHz, 1 probe supplied for each channel

Display: 15.6” HD TFT-LCD with capacitive touch screen (1920*1080)

Standard Accessories

USB cable: 1

Quick start: 1

Passive probe (SP3150A): 1/channel

Certificate of calibration: 1

Wireless mouse: 1

Power cord: 1

Protective Cover: 1
