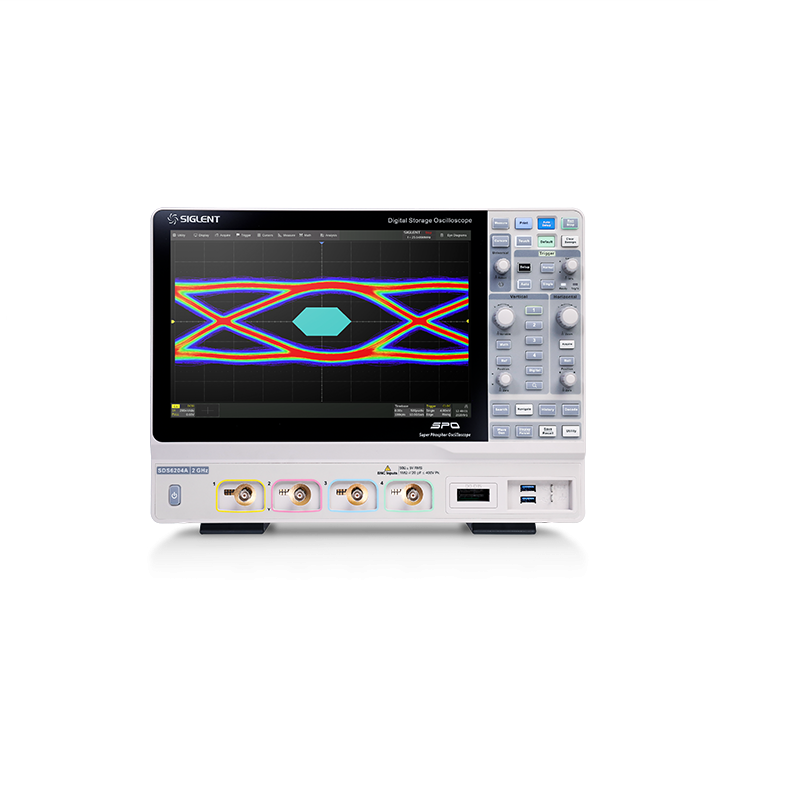

SIGLENT SDS6204A Digital Storage Oscilloscopes (2GHz; 4+EXT; 5GSa/s)

Analog channels: 4+EXT

Bandwidth: 2GHz

Sample rate (Max.): 5GSa/s (10 GSa/s ESR) @ each channel

Memory depth (Max.):

+ 500Mpts/ch (single-channel）

+ 250Mpts/ch (dual-channel)

+ 125Mpts/ch (3 or 4 channels)

Waveform capture rate (Max.):

+ Normal mode: 170,000wfm/s;

+ Sequence mode: 750,000wfm/s

Vertical resolution: 8-bit, up to 16-bit in Hi-Res mode

Trigger type: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial

Serial trigger and decode:

+ Standard: I2C, SPI, UART, CAN, LIN

+ Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only)

Measurement: 50+ parameters，statistics, histogram, trend, and track supported

Math:

+ 4 traces

+ 8 Mpts FFT, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold. Supports formula editor

Data analysis: Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot and Power Analysis, Eye/Jitter Analysis

Digital channel (optional): 16-channel; maximum sample rate up to 1 GSa/s; record length up to 50Mpts

Waveform generator (optional): Single-channel external USB isolated waveform generator, frequency up to 25MHz, 125 MSa/s sample rate, 16kpts waveform memory

I/O:

+ USB 3.0 Host x2，USB 2.0 Host x2，USB 2.0 Device，LAN，micro SD card, HDMI, External trigger，

+ Auxiliary output (TRIG OUT, PASS/FAIL)

Probe (Standard): SP3050A, 500 MHz, 1 probe supplied for each channel

Display: 12.1 TFT-LCD with capacitive touch screen (1280*800)
