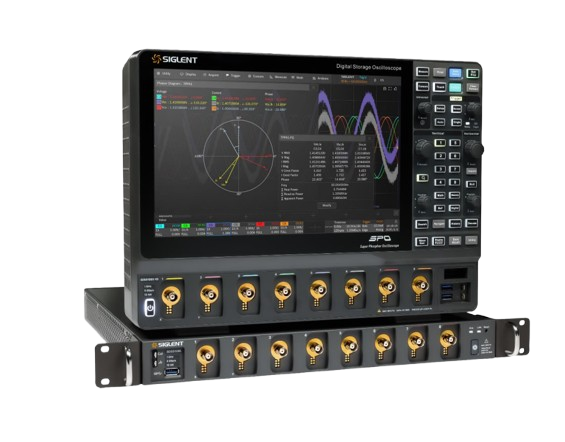

SIGLENT SDS5108L Digital Storage Oscilloscope (8CH; 1GHz)

Analog channels:  8 + EXT

Bandwidth:  1 GHz

Sample rate (Max.): 5 GSa/s (quarter channel/half channel mode); 2.5 GSa/s (full channel mode)

Vertical Resolution: 12-bit; Up to 16-bit in HiRes mode

Memory depth (Max.): 2.5 Gpts/ch (quarter channel mode); 1 Gpts/ch (half channel mode); 500 Mpts/ch (full channel mode)

Waveform capture rate (Max.) : Normal mode: Up to 160,000 wfm/s；Sequence mode: Up to 650,000 wfm/s

Trigger type:  Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial

Serial trigger and decode: Standard: I2C, SPI, UART, CAN, LIN;  Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC429

Measurement : 60+ parameters. Statistics, histogram, trend, and track supported

Math: 8 traces; 8 Mpts FFT, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex , 10x , ln, lg, Interpolation, MaxHold, MinHold, ERES, Average, Filter. Supports formula editor

Data analysis:  Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot , Power;  Analysis, Double Pulse Test

Waveform generator (optional): SAG1021I USB isolated waveform generator module, frequency up to 50 MHz, 125 MSa/s sample rate, 16 kpts waveform memory

Probe (Standard) : 500 MHz, 1 probe supplied for each channel

I/O: USB 3.0 Host, USB 2.0 Host, USB 3.0 Device

(USBTMC), 1000M LAN (VXI-11+SCPI, Telnet  (5024)+SCPI, Socket (5025)+SCPI, LXI,  WebServer)

Display: HDMI

Others: External Trigger In, Aux Out (TRIG OUT, PASS/FAIL), 10 MHz In, 10 MHz Out
