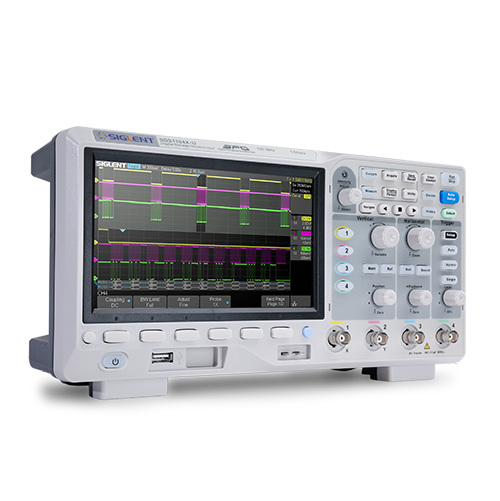

SIGLENT SDS1104X-U Super Phosphor Oscilloscope (100MHz; 4CH; 1GSa/s)

Bandwidth: 100MHz

Sample rate (Max.): 1GSa/s (One channel), 500MSa/s(Two channels), 250MSa/s(Four channels)

Channels: 4

Memory depth (Max.): 14Mpts

Waveform capture rate (Max.): 100.000wfm/s (normal mode), 400.000wfm/s (sequence mode)

Trigger type: Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video

Serial trigger and decoder (Std): IIC, SPI, UART, CAN, LIN

I/O: USB Host, USB Device, LAN, Pass/Fail, Trigger Out

Probe (Std): 4 pcs passive probe PP510

Display: 7-inch TFT-LCD (800x480)

Weight: 2.6kg

Standard accessories

USB cable: 1

Quick Start: 1

Passive probe: 4

Certification: 1

Power cord: 1

Optional accessories

Isolated Front End: ISFE

STB Demo Source: STB-3

High Voltage Probe: HPB4010

Current Probes: CP4020/CP4050/CP4070/CP4070A/CP5030/CP5030A/CP5150/CP5500

Differential Probes: DPB4080/DPB5150/DPB5150A/DPB5700/DPB5700A

Rack Mount: SDS1X-E-RMK
