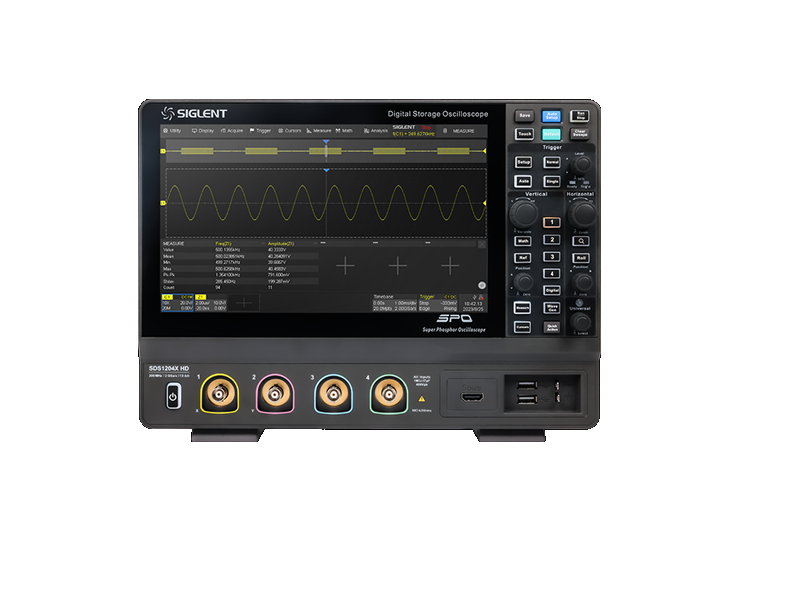

SIGLENT SDS1102X HD Digital Storage Oscilloscope (2 + EXT; 100 MHz)

Analog channels: 2 + EXT

Bandwidth: 100 MHz

Vertical resolution: 12-bit

Sample rate (Max.):

+ One channel mode: 2 GSa/s,

+ Two channel mode: 1 GSa/s,

+ Four channel mode: 500 MSa/s

Memory depth (Max.):

+ One channel mode: 100 Mpts/ch,

+ Two channel mode: 50 Mpts/ch,

+ Four channel mode: 25 Mpts/ch

Waveform capture rate (Max.)

+ Normal mode : 120,000 wfm/s;

+ Sequence mode : 500,000 wfm/s

Trigger type: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video,

Qualified, Nth edge, Delay, Setup/Hold time, Serial

Serial trigger and decode(Standard): I2C, SPI, UART, CAN, LIN, CAN FD(Decode Only), FlexRay(Decode Only)

Measurement: 50+ parameters, statistics, histogram, trend, and track supported

Math:

+ 4 traces

+ 2 Mpts FFT, Filter, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average. Supports formula editor

Data analysis: Search, Navigate, History, Mask Test, Counter, Bode plot, and Power Analysis

Digital channel (optional): 16-channel; maximum sample rate up to 1 GSa/s; record length up to 10 Mpts

USB AWG module (option): One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts, isolated output

I/O: USB 2.0 Host x2, USB 2.0 Device, 10 M / 100 M LAN, Auxiliary output (TRIG OUT, PASS/FAIL), SBUS (Siglent MSO)

Probe (Standard): Passive probe PP510 for each channel

Display: 10.1 TFT-LCD with capacitive touch screen (1024*600)
