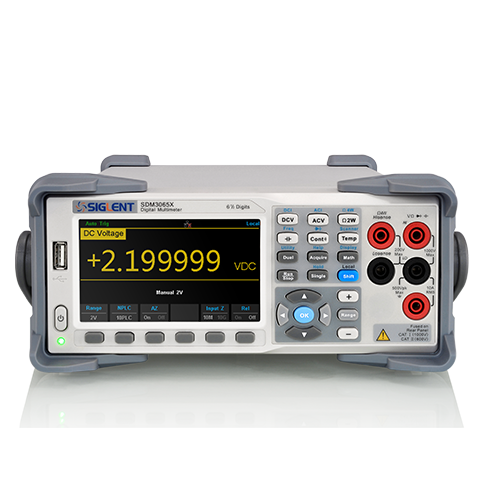

SIGLENT SDM3065X-SC Digital Multimeter (6½ digits; Scanner card)

DC Voltage: 200mV-1000V

DC Current: 200μA-10A

AC Voltage: True-RMS, 200mV-750V

AC Current: True-RMS, 200μA-10A

2/4-Wire resistance: 200Ω-100MΩ

Capacitance: 2nF-100mF

Continuity test: Range is fixed at 2kΩ

Diode Test: Adjustable range is 0-4V

Frequency measurement: 3Hz-1MHz

Period measurement: 1μs-333.33ms

Temperature: Support for TC and RTD sensors

Display: 4.3” TFT-LCD, 480*272

Reading resolution: Real 6½ digits readings resolution (2,200,000 counts)

Size: 1 Gb Nand Flash

Standard Interface: USB Device, USB Host, LAN

Optional Interface: USB-GPIB Adapter and Scanner Card SC1016

Scanner Card SC1016: Support

Standard accessories

Power Cord: 1

USB Cable: 1

Quick Start: 1

Calibration Certificate: 1

VIDEO

Datasheet

Manual
