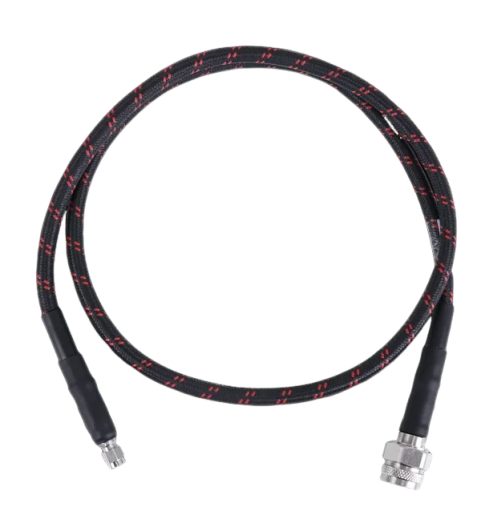

SIGLENT N-SMA-18L SMA cable (DC – 18 GHz)
ManufacturerSIGLENT(View more products from this manufacturer)
ModelN-SMA-18L
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Connector 1: N (Male)
Connector 2: SMA (Male)
Length: 1000 ± 10 mm
Insertion Loss (DC–18 GHz): 2.3 dB
Impedance: 50 Ω
Frequency Range: DC – 18 GHz
VSWR: < 1.35 up to 18 GHz
Phase Stability vs. Flexure: < 10° @ 18 GHz (wrapped around a 50 mm mandrel)
Amplitude Stability vs. Flexure: < 0.1 dB @ 18 GHz (wrapped around a 50 mm mandrel)
Minimum Bend Radius: 50.8 mm
Cable Diameter (with armor): 6.6 mm
Operating Temperature Range: -40°C to 150°C
