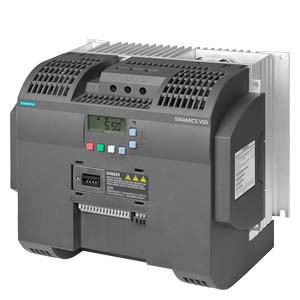

SIEMENS 6SL3210 5BE31 1UV0 Converter

SPECIFICATION :

Show similar products (270)

Manufacturer: SIEMENS

Type of module: Inverter

Max motor power:11kW

Inverter output voltage : 3 x 400V AC

Three-phase power supply voltages

range : 3 x 380...480V AC

Input 1 properties

rotational speed setting with signal

0...10V, 4...20mA, 0...20mA

Electrical connection

screw terminals

Mounting

for wall mounting

The programming method

keypad

Number of inputs: 6

Number of analog inputs: 2

Operating temperature : 0...60°C

Output frequency : 0...599Hz

Current rating: 25A

Number of analog outputs: 1

IP rating: IP20

Number of outputs :3

Manufacturer series

SINAMICS V20

Show similar products (270)

Gross weight: 3860 g
