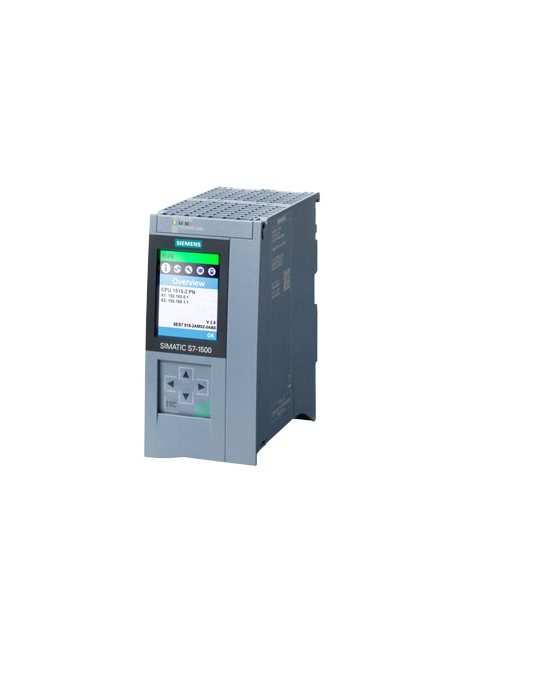

SIEMENS 6ES7515-2AM02-0AB0 SIMATIC S7-1500, CPU 1515-2 PN

HW functional status: FS01

Firmware version: V2.9

Product function

I&M data: Yes; I&M0 to I&M3

Isochronous mode: Yes; Distributed and central; with minimum OB 6x cycle of 500 µs (distributed) and 1 ms (central)

Engineering with

STEP 7 TIA Portal configurable/integrated from version: V17 (FW V2.9) / V16 (FW V2.8) or higher; with older TIA Portal versions configurable as 6ES7515-2AM01-0AB0

Configuration control

via dataset: Yes

Display

Screen diagonal [cm]: 6.1 cm

Control elements

Number of keys: 8

Mode buttons: 2

Supply voltage

Rated value (DC): 24 V

permissible range, lower limit (DC): 19.2 V

permissible range, upper limit (DC): 28.8 V

Reverse polarity protection: Yes

Mains buffering

Mains/voltage failure stored energy time: 5 ms

Repeat rate, min.: 1/s

Input current

Current consumption (rated value): 0.8 A

Current consumption, max.: 1.1 A

Inrush current, max.: 2.4 A; Rated value

I²t: 0.02 A²·s

Power

Infeed power to the backplane bus: 12 W

Power consumption from the backplane bus (balanced): 6.2 W

Power loss

Power loss, typ.: 6.3 W

Memory

Number of slots for SIMATIC memory card: 1

SIMATIC memory card required: Yes

Work memory

integrated (for program): 500 kbyte

integrated (for data): 3 Mbyte

Load memory

Plug-in (SIMATIC Memory Card), max.: 32 Gbyte

Backup

maintenance-free: Yes
