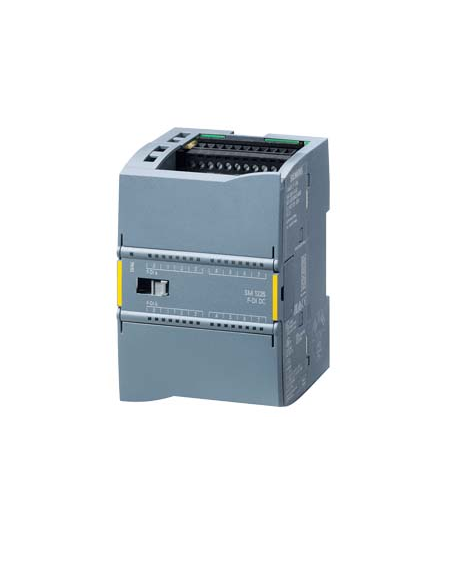

SIEMENS 6ES7226-6BA32-0XB0 Module S7-1200

Supply voltage

Rated value (DC): 24 V

permissible range, lower limit (DC): 20.4 V

permissible range, upper limit (DC): 28.8 V

power supply according to NEC Class 2 required: No

Input current

from backplane bus 5 V DC, max.: 155 mA; Current consumption (SM Bus, 5 V DC): 155 mA

Digital inputs

from load voltage L+ (without load), max.: 130 mA; 130 mA + 6 mA / input used + any Vs1/Vs2 current used

Power loss

Power loss, typ.: 7 W

Digital inputs

Number of digital inputs: 16; 16 (1oo1) or 8 (1oo2); Note: You can individually assign each pair of inputs

"a.x" and "b.x" as a single (1oo2)-channel or as 2 separate (1oo1)-channels

Number of simultaneously controllable inputs

horizontal installation— up to 50 °C, max. 16; 16 inputs at 55 °C horizontal

vertical installation — up to 40 °C, max. 16; 16 inputs at 45 °C vertical

Input voltage

for signal "0" -30 V DC to +5 V DC

for signal "1" 15 V DC to 30 V DC

Input current

for signal "0", max. (permissible quiescent current) 0.5 mA

for signal "1", typ. 5 mA
