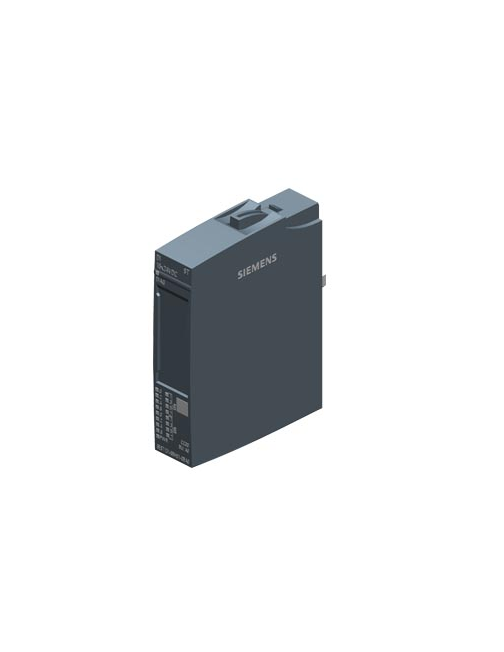

SIEMENS 6ES7131-6BH01-0BA0 SIMATIC ET 200SP Digital Input Module

HW functional status: From FS02

Firmware version: V0.0

FW update possible: No

usable BaseUnits: BU type A0

Color code for module-specific color identification plate: CC00

Product function

I&M data: Yes; I&M0 to I&M3

Isochronous mode: No

suitable for operation on PROFINET R1 IMs: Yes

Engineering with

STEP 7 TIA Portal configurable/integrated from version: V14

STEP 7 configurable/integrated from version: V5.5 SP3

PCS 7 configurable/integrated from version: V8.1 SP1

PCS neo can be configured/integrated from version: from V1.0.0

PROFIBUS from GSD version/GSD revision: One GSD file each, Revision 3 and 5 and higher

PROFINET from GSD version/GSD revision: GSDML V2.3

Operating mode

DI Yes

Counter No

Oversampling No

MSI No

Supply voltage

Rated value (DC): 24 V

permissible range, lower limit (DC): 19.2 V

permissible range, upper limit (DC): 28.8 V

Reverse polarity protection": Yes

Input current

Current consumption, max.: 90 mA

Encoder supply

24 V encoder supply

24 V: No

Power loss

Power loss, typ.: 1.7 W

Address area

Address space per module

Inputs: 2 byte; + 2 bytes for QI information
