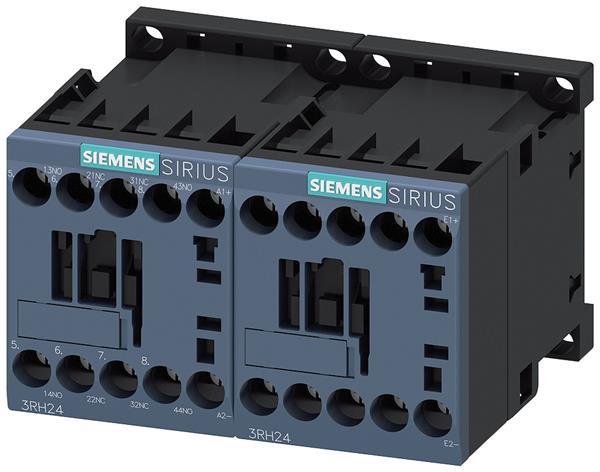

SIEMENS 3RH24221BW40 Electromechanical Contactors CONT.RELAY LATCHED.2NO+2NC.DC48V
ManufacturerSIEMENS(View more products from this manufacturer)
Model3RH24221BW40
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 73 mm
Height: 57.5 mm
Length: 90 mm
Coil Type: DC Type, Latching
IP Rating: IP20
Coil Voltage: 48 VDC
Mounting Style: Chassis Mount
Coil Termination: Screw
Switching Voltage: 690 VAC
Relay Contact Form: 2 Form A (DPST-NO), 2 Form B (DPST-NC)
Contact Termination: Screw
Contact Current Rating: 10 A
Maximum Operating Temperature: + 60 C
Minimum Operating Temperature: - 25 C
