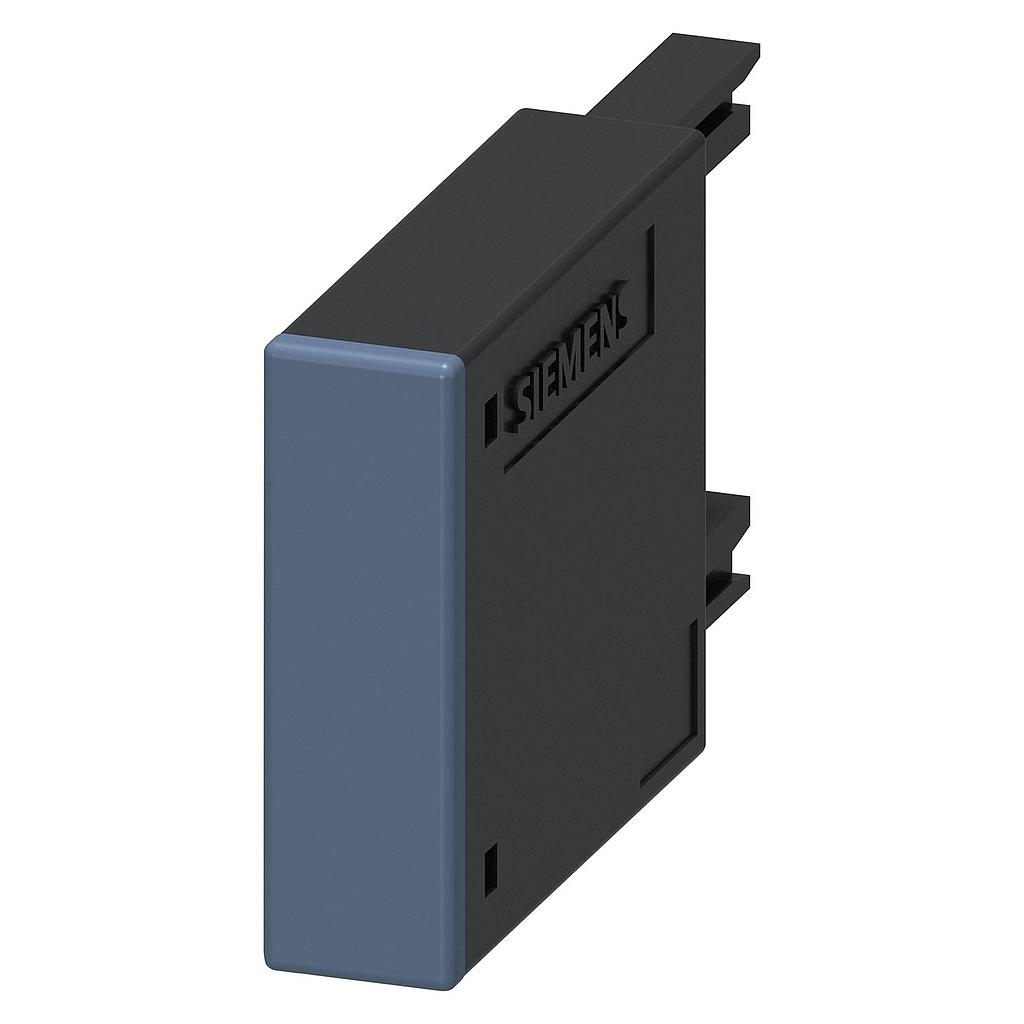

SIEMENS 3RT2916-1BD00 surge suppressor, varistor, 127-240 V AC, 50/60 Hz, 150-250 V DC

product brand name : SIRIUS

product category : Surge suppressor

product designation : Varistor

General technical data

size of contactor S00

Substance Prohibitance (Date) 10/01/2009

SVHC substance name Lead - 7439-92-1

type of voltage of the control supply voltage AC/DC

control supply voltage 1 at AC

● at 50 Hz 127 ... 240 V

● at 60 Hz 127 ... 240 V

control supply voltage frequency

● 1 rated value 50 Hz

● 2 rated value 60 Hz

control supply voltage 1 at DC

● 150 ... 250 V

design of the surge suppressor Varistor

Ambient conditions

ambient temperature

● during operation -25 ... +60 °C

● during storage -40 ... +80 °C

Installation/ mounting/ dimensions

mounting position any

fastening method clip-on

height 46 mm

width 28 mm

depth 9 mm
