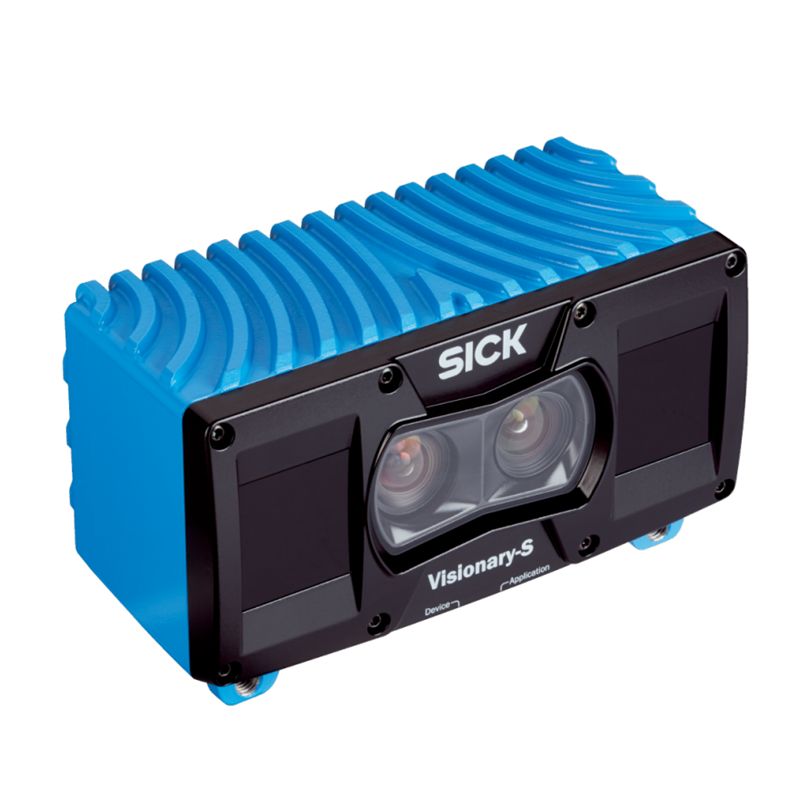

SICK V3S142-1AABAAB Visionary-S - 3D Machine (0.5m...65m; 60° x 50°)

Technology: 3D snapshot stereoscopy

Tasks: Nova Visionary-S; Static Package Dimensioning; EventCam App

Working Distance: 0.5m...65m

Field of View (FOV): 1.6m x 1.3m

Detection Angle: 60° x 50°

Angular Resolution: 0.094° x 0.098°

Illumination Color: Infrared, laser, invisible, 808 nm

Laser Class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021, EN/IEC 60825-1:2007)

Connection Type: Power/I/O: M12 17-pin, A-coded / Gigabit Ethernet: M12, 8-pin, X-coded

Supply Voltage: 24V DC, ± 15%

Power Consumption: 19 W, Typical (without digital I/O)

Current Consumption (Max): 3 A

Enclosure Rating: IP67

Housing Color: Blue, black

Weight: 1.7 kg, without heat sink

Dimensions (L x W x H): 162 mm x 93 mm x 78 mm

Protection Class: IP67

Scan/Frame Rate: 30 frames/second, Up to 9,850,000 3D data points/second

Storage Temperature: –20 °C ... +70 °C
