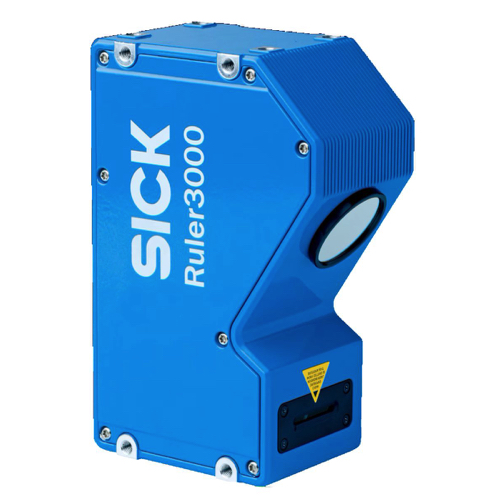

SICK V3DX3-010BR21A Ruler3000 - 3D Machine Vision (99 mm ~ 149 mm; 40 mm x 12 mm)

Technology: 3D triangulation

Shutter technology: Global shutter

Working distance: 99 mm ... 149 mm

Field of view (sample): 40 mm x 12 mm

Exposure mode: Linear, HDR

Illumination: Integrated

Illumination color: Blue, laser, Visible, 450 nm, ± 10 n

Laser class: 3R (EN 60825-1:2014+A11:2021; IEC 60825-1:2014, Complies with the FDA performance requirements for laser products except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice 56 dated May 8, 2019.)

Connection type: Voltage – I/O: M12, 17-pin male. Gigabit Ethernet: M12, 8-pin female connector, X-coded

Supply voltage: 24V DC, ± 10%

Power consumption: ≤ 12 W

Current consumption: ≤ 1.5 A

Enclosure rating: IP65, IP67

Weight: 1.2 kg

Dimensions (L x W x H): 151.5 mm x 60.3 mm x 100 mm
