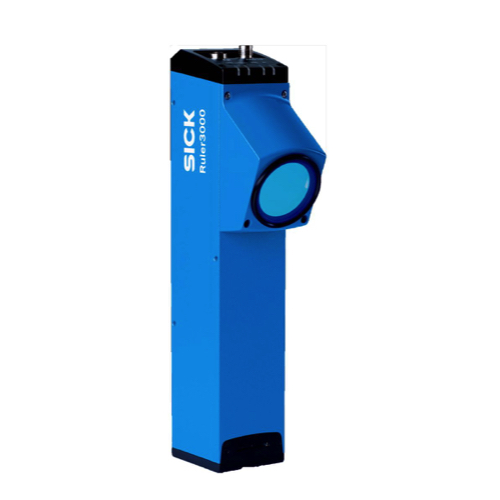

SICK V3DU3-060RM21A Ruler3000 - 3D Machine Vision (395 mm ... 815 mm; 500 mm x 290 mm)

Technology: 3D triangulation

Shutter technology: Global shutter

Working distance: 395 mm ... 815 mm

Field of view (sample): 500 mm x 290 mm

Exposure mode: Linear, HDR

Illumination: Integrated

Illumination color: Red, laser, Visible, 660 nm, ± 15 nm

Laser class: 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014, Complies with the FDA performance requirements for laser products except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice 56 dated May 8, 2019.)

Connection type: Voltage – I/O: M12, 17-pin male. Gigabit Ethernet: M12, 8-pin female connector, X-coded

Supply voltage: 24V DC, ± 10%

Power consumption: ≤ 12 W

Current consumption: ≤ 1.5 A

Enclosure rating: IP65, IP67

Weight: 2.15 kg

Dimensions (L x W x H): 336 mm x 65 mm x 128 mm
