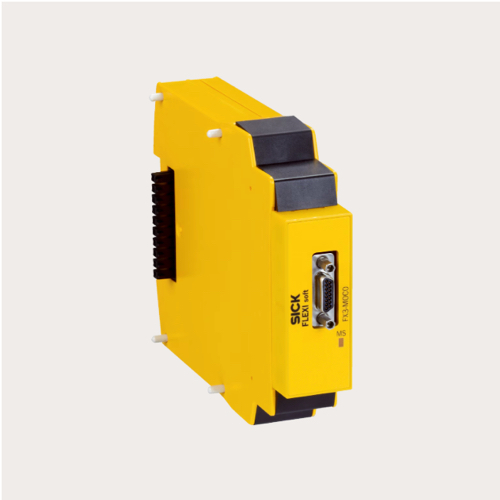

SICK FX3-MOC000000 Safety Controllers Flexi Soft (Motion Control module)

Module: Motion Control Module

Protective coating: No

Connection type: Male connector, Micro D-Sub, 15-pin

Encoder interface: Incremental encoder A/B, TTL; Incremental encoder A/B, HTL 12 V or 24 V; Incremental encoder A/B, RS-422; Sin/cos encoder; SSI encoder (master / slave); HIPERFACE®

Safe drive functions: Safe Stop 1 (SS1), Safe Stop 2 (SS2), Safe Operating Stop (SOS), Safe Speed Monitoring (SSM), Safe Limited Speed (SLS), Safe Direction (SDI), Safe Brake Control (SBC)

Dimensions (W x H x D): 22.5 mm x 96.5 mm x 126 mm

Weight: 120 g

Protection class: IP20 (EN 60529)

Ambient temperature: –25 °C ... +55 °C

Storage temperature: –25 °C ... +70 °C
