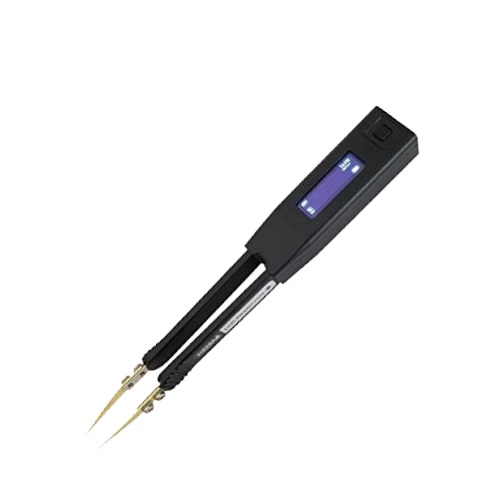

SIBORG LCR-Reader Automatic LCR & ESR meter (0.5%, 10Khz)

Basic Accuracy

Resistance: 0.5%

Capacitance: 1%

Inductance: 1%

Measurement Ranges

Resistance R: 0.1 Ω to 10 Ω

Capacitance C: 2 pF to 5mF

Inductance L: 0.5 uH to 999 mH

Technical Specifications

Test Frequency: 1 kHz, 10 kHz, 100Hz

Test Signal Level: 0.45 +/- 5% Vrms Sine wave

Source Impedance: 62.5Ω/1K Ω/15kΩ +/- 1%

Physical Specification

Size: 14.8 x 2.0 x1.5 cm (5.8 x 0.76 x 0.57 in)

Weight: 29 grams (0.063 lb)

Display: 0.91-inch, 128x32 OLED display

Battery Type: 3.7V LiPO; Rechargeable 220 mAh

Battery Life: 40 hours (2-hour charging cycle)

Charging Source: USB power adapter (output voltage DC 5V)

Storage Compliance: -20 ° to 60 °, 0% to 80% RH

Operating Temperature: 0 °C to 50 °C
