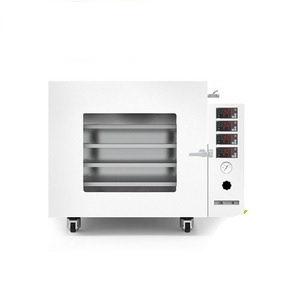

SH Scientific SH-VDO-252NG Precision Temp Control Vacuum Drying Oven (150℃, 252l)

Temp Range: Ambient +5℃ to 150℃ (Ambient +9℉ to 302℉)

Temp Uniformity±0.5℃ at 38℃: (100℉)

Vacuum Resistance : 0 to 76 cmHg (0 to 0.1MPa)

Heating Type: Shelf Individual Direct Heating

Temp&Time controller: Microprocess PID Digital controller

Controller: 5EA

Heater Capa: 0.3KW x 5EA =1.5KW

LED Lamp: DC 24V, 1.2W, LED bar, Waterproof, Cool White

Dimension Internal

(W×D×H): 600×700×600mm

23.6x27.6x23.6''

Dimension External

(W×D×H): 965x953x825mm

38.0x37.5x32.5''

Weight: 250 kg

Material Internal: Stainless Steel

Material External: Steel Plate With Powder Heating Coated

Materal Packing: Silicon Rubber Packing

View Window: YES (with LED light)

Heating Shelves: 5 Supplied

Electrical Requirements

230V,50/60Hz, 1Φ: 6.5 A
