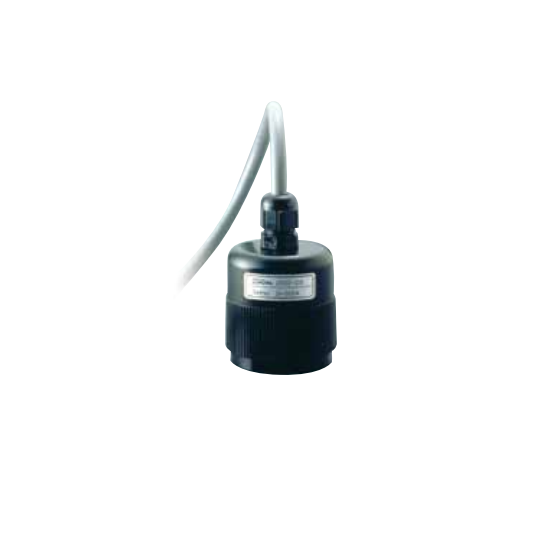

Showa Sokki 2502-02 Vibration Observation Meter (Velocity; 50mm/sRMS)

Measurement mode: Velocity

Full scale range: 50mm/sRMS

Frequency range: 10~1,000Hz

Measurement range 1-110% of full scale

Output DC4-20mA/O- full scale

Linearity: Within 1% of full scale

Accuracy: Within 5% (80Hz, 1/2 full scale, 20°C)

Drive power supply DC9~28V

Temperature range -20~8О°С

Protective structure IP64

Vibration resistance Vibration 200m/s2, shock 1,000m/s²

Insulation resistance: 100Μ Ω DC500V (terminal to casing)

Withstand voltage: AC1,500V, 1 minute (terminal to casing)

Output cable: 3m, direct from unit, crimp terminals at end

External dimensions and weight: ф 45×45(H)mm, 105g (not including cables)

Material: Glass-reinforced phenolic resin:

Mounting: M6 screws

Options: Extension cable CA02743-XXm (Including cost of attaching the dedicated connector to the body) MG-6 magnet for mounting
