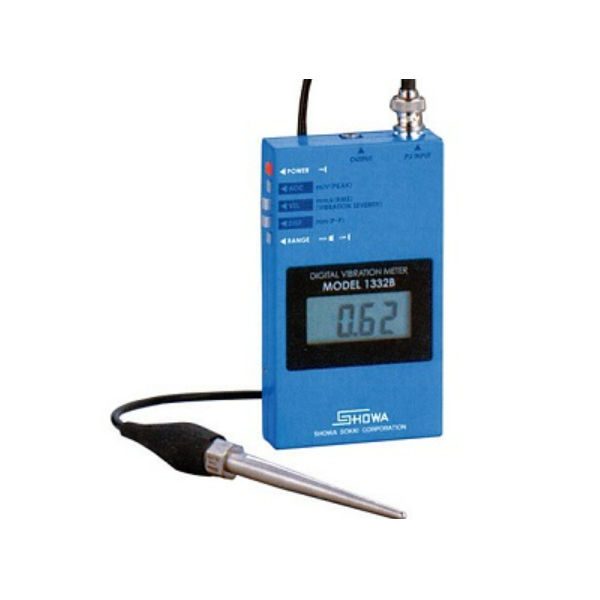

Showa Sokki 1332B Digital Vibrometer

Acceleration:

Hi: 0.1～199.9m/s²

Low: 0.01～19.99m/s²

Velocity:

Hi: 0.1～199.9mm/s

Low: 0.01～19.99mm/s

Displacement:

Hi: 0.01～19.99mm

Low: 0.001～1.999mm

Frequency Range:

Acceleration: 5～5000Hz(±1dB), 5～10000Hz(±3dB)

Velocity: 10～1000Hz

Displacement: 10～1000Hz(±1dB)

Accuracy: Acceleration: ±3%±1dgt

Velocity: ±5%±1dgt

Displacement: ±5%±1dgt

Output: AC ±2V FS

Power Supply: AA alkaline battery×2

Dimension: W75×H130×D24mm

Weight: 230g

Accessory: Piezoelectric type acceleration sensor, Low noise cable, L-contact pin, Magnet, Portable case
