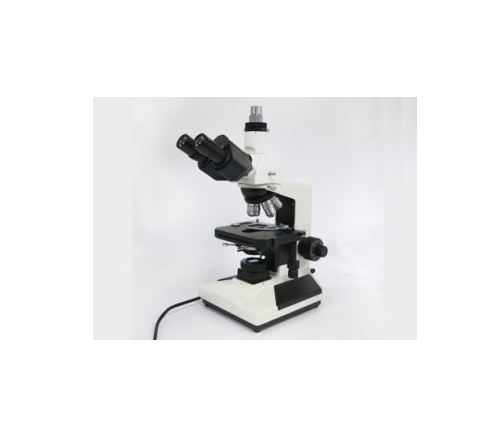

Trinocular biological microscope with camera-attachable JIS scope Shodensha BC-31

Specification:

The third scope is JIS standard with 23.2mm inner diameter and can be attached with general microscope cameras.

(C-mount adaptor (optional part) can be used to attach a C-mount camera)

・5 barrel reverse revolver

・Wide Field eyepiece

・High quality plan achromatic objective lens

・Wide mechanical stage （140mmx160mm、movable range 50mmx75mm）

*General Specification

Magnification 40x、100x、400x、1000x

Eyepiece Lens WF10x

Objective Lens 4x、10x、40x、100x

Focus Adjustment Coaxial Coarse/Fine Focus System

Interpupillary Distance 53-75mm

Lens Barrel Trinocular

Wide mechanical stage 140mmX160mm、 Movable range 50mmX75mm

Lighting Halogen lamp 6V 20W（Continuous light adjustment）

Dimension 320x200x470mm（w/ JIS barrel）

Weight 7.0kg

Accompanying parts : Filter (Blue, ) Immersion oil, Halogen bulb（spare）、Fuse（spare）、Plastic Protective cover
