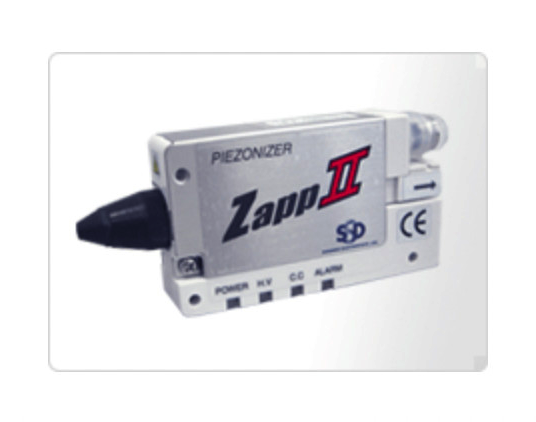

Shishido Zapp Ⅱ Ultra-small-size Piezoelectric Ionizer PIEZONIZER (2.4 VA)

Input power supply: DC+24 V ±10%

Electric consumption: 2.4 VA

Air pressure: *1 Please check with below sheet

Airflow supply: 30 ℓ / min to 160 ℓ/min

Ozone density: 0.05ppm or less (air pressure input: 0.02 MPa, distance 300mm)

Guaranteed operating temperature: (stored at -10℃ to 60℃)

Guaranteed operating humidity: From 65% or less with no condensation (stored at -90% or less with no condensation)

Main unit dimensions: 87×18×50mm (W×H×D) not including protruding portion

Weight: 78g

Accompanying items: Power supply cable(2.5m)

*1: The available air pressure range is different for each nozzle, please check with datasheet.
