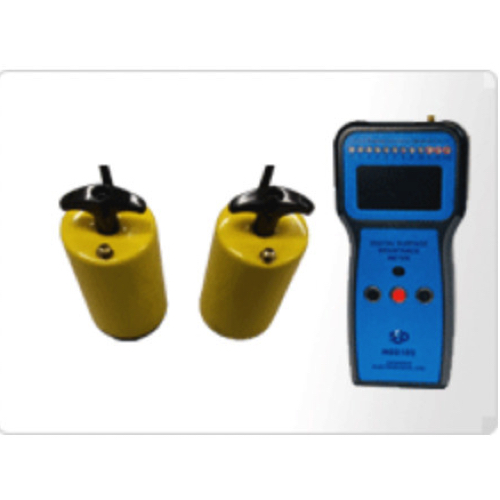

Shishido MEG102 Digital Surface Resistance Meter (10V, 100V(± 5%))

Measured Range: 10V supply: 1x103 ~ 1x106 Ohm

100V supply: 1x106 ~ 1012 Ohm

Measured Resistance Accuracy: ±10%(above 1011 ±20%)

Applied Voltage: 10V, 100V(± 5%)

Memory Capacity: For 100 times measurement

Power: AA alkaline dry batteries (4 pcs)

Battery Life: Around 1,500 times (Available measured data)

Weight: 400g

Dimentions: Main Unit: 100mm×210mm×32mm

Environment: Temperature: 5 ~ 30°C, Humidity: Below 80%RH

Accessories: Probe: 2.27kg, OMEG-EP (2), Testing Wire OMEG-CA (2), Electrode spacer (10" & 36"), Allegator Clip(1), Type three alkaline dry batteries (4 pcs), Carring case

Optional Probe: OMEG-RING(IEC Standard), OMEG-B

Datasheet
