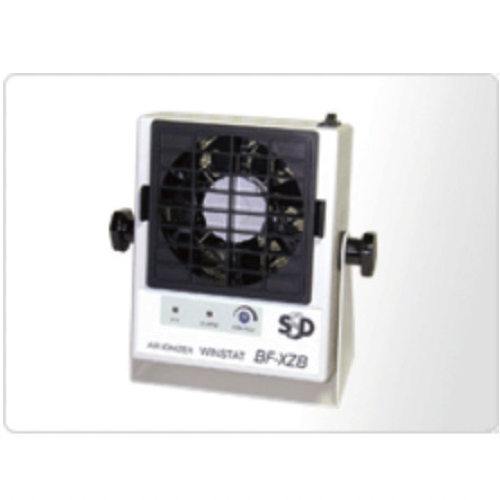

Shishido BF-XZB Static Eliminator Blower WINSTAT (7.2 VA)

Input power supply: 24 VDC(AC adaptor AC100~240V available)

Capacity: 7.2 VA

Output voltage: 2.5 kVAC

Ion balance: ±10 V or less (Distance at 300mm)

Airflow: 1.0~1.7 m3 / min

Air Speed: 1.6~2.4 m/sec(with Straight Louver at 300mm)

0.7~1.3 m/sec(with Wide angle Louver at 300mm)

Ozone density: 0.04 ppm or less(Distance at 150mm)

Operating Environment: 0 to 40℃ / 15 to 65% RH (no condensation)

Main unit dimensions: 104×126×50 mm (W×H×D) only body size

Weight: 460 g (with Bracket)

Noise level: 60 dB (A)(at 1m distance)

Indication: Green: Normal condition(H.V), Red: HV Abnormal(ALARM)

Alarm functions: Normal: ON, Abnormal (HV alarm with Red LED light): OFF MOS FET Relay, Normally Closed contact.

Maximum current: 100mA, Voltage: Below 30VDC.

Accessories: Manual, AC Adaptor, Signal output cable(2m), Wide angle louver, Cleaning Brush.

Optional Parts:

Discharge Emitter unit:DNU-W60

Filter (10pcs) (OBF-FZA-1-10)

Datasheet
