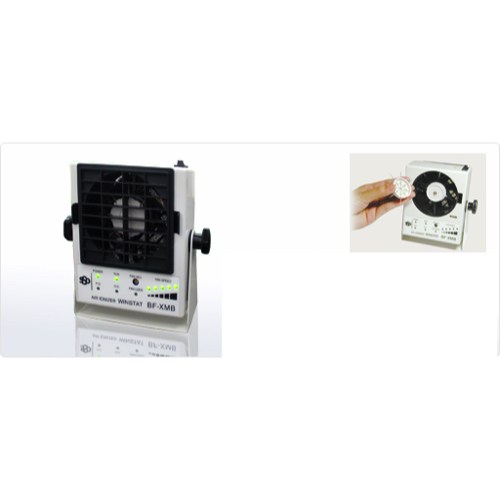

Shishido BF-XMB Compact Air Ionizer WINSTAT (6 VA)

Input power supply: 24 VDC (with AC 100~240V ACadapter)

Electric consumption: 6 VA

Output voltage: ±7,000 V0-p

Ion balance: ±10V or less (Distance at 300mm)

Air Volume: 0.7 to 1.2 m3 / min

Air speed:

1.2 to 1.9 m / sec (with Straight Louver at 300mm center)

0.7 to 1.2 m / sec (with Wide angle Louver at 300mm center)

Ozone density: 0.004 ppm or less (distance 150 mm)

Operating Environment: 0 to 40℃ / 15 to 85% RH (no condensation)

Filter: Pre-filter level

Output signal:

Normal: ON, Abnormal (HV alarm or fan alarm with Red LED light): OFF

MOS FET Relay, Normally Closed contact.

Maximum current: 200mA, Voltage: Below 30VDC.

Main unit dimensions: 104×126×67 mm (W×H×D) not including projecting portion

Weight: Approx. 560g (including stand)

Noise: 51 dB(A) (distance 1 m)

Accompanying items: Operation manual, AC adapter, signal output cable, cleaning brush, Wide angle louver

Optional parts:

Emitter needle unit :DNU-W60

Filters :OBF-FZA-1-10(package of 10)
