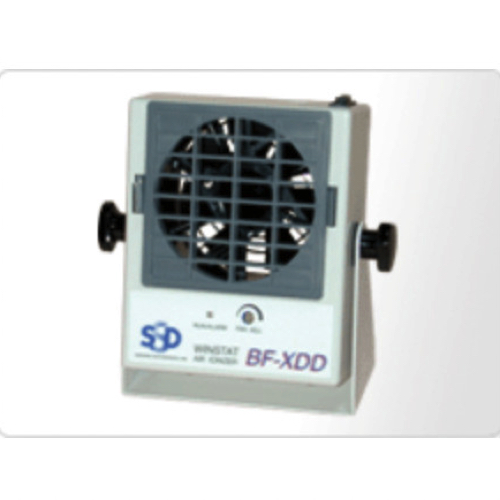

Shishido BF-XDD Static Eliminator Blower WINSTAT (10VA)

Input Power: DC24V (AC adaptor AC100~240V available)

Capacity: 10 VA

Output voltage: DC ±7,500 V

Ion Balance: Below ±15 V(Distance at 300mm: initial setting)

Decay Time: Below 1.3 second(Distance at 300mm: Max. fan speed: initial setting)

Air Volume: 0.7 ～ 1.8 m3 / min

Air Speed: 1.2 ～ 2.9 m/sec(Distance 300mm center)

Ozone Level: Below 0.007 ppm(Distance at 150mm)

Display: RUN (Normal: Green), ALARM (Abnormal: Red)

Environment: Temperture: 0 ～ 40℃, Humidity: 1 ～ 85%RH(No Condensation)

Filter: Not Available

Abnormal Output: MOS FET Relay no-volttage B contact output (abnormal power)

Dimension: 104×126×60 mm (W×H×D) Without Stand

Weight: Around 500g (With Stand)

Noise: 61dB (A) (Distance 1m))

Accessories: Manual, AC Adaptor, Straight Louver (OBF-L120S), Signal output cable(2/set)

Option: Emitter Needle (4/set ): DN-W16
