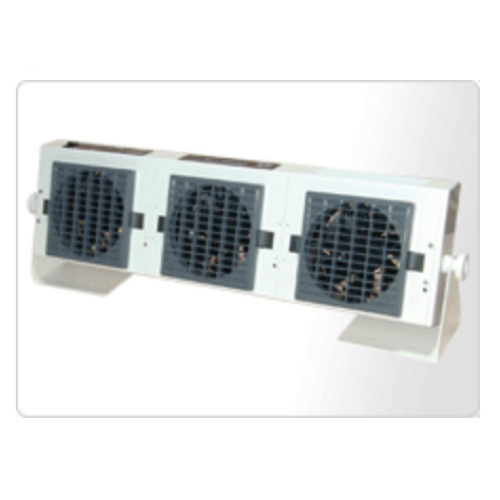

Shishido BF-X6DD Static Eliminator Blower WINSTAT (33 VA)

Input Power: DC24V (AC adaptor AC100~240V available)

Capacity: 33 VA (Max. fan speed)

Output voltage: DC±7,500 V

Ion Balance: Below ±15 V(Distance at 300mm: initial setting)

Decay Time: Below 0.6 second(Distance at 300mm: Max. fan speed: initial setting)

Air Volume: 1.4～3.6m3 / min × 3 fans

Air Speed: 2.4 ～ 5.1 m/sec(Distance 300mm center)

Ozone Level: Below 0.007 ppm(Distance at 150mm)

Environment: Temperture: 0 ～ 40℃, Humidity: 15 ～ 85%RH(No Condensation)

Filter: Not Available

Display: POWER Indicator: Green), RUN(Indicator: Green), ALARM(Abnormal: Red)

Abnormal Output: MOS FET Relay no-voltage B contact output (power abnormal)

Dimension: 550×159×75 mm (W×H×D) Without Stand

Weight: Around 2500g (With Stand)

Noise: 66dB (A) (Distance 1m)

Accessories: Manual, AC Adaptor, Stand(2/set), Knob Bolt(2), Signal ouput cable(2/set)

Option: Emitter Needle (4/set ): DN-W16

Datasheet
