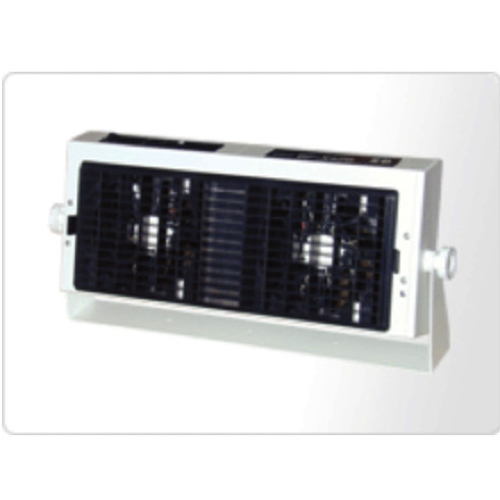

Shishido BF-X4ZB Static Eliminator Blower WINSTAT (25 VA)

Input power supply: DC24 V (with AC100 to 240 V AC adapter)

Electric consumption: 25 VA

Output voltage: AC 3,000 V

Ion balance: ±10 V or less (distance 300 mm; when shipped from the factory)

Airflow: 1.9 to 3.0 m3 / min

Air speed: 1.8 to 2.8 m / sec (distance 300 mm; centered)

Ozone density: 0.04 ppm or less (distance 150 mm)

Operating Environment: 0 to 40℃ / 15 to 65% RH (no condensation)

Filter: Pre-filter level

Alarm output: Abnormal high voltage (ALARM):

Normally Close and Normally Open contact by MOS FET relay no voltage contact output

Cleaning check (C.C):

Normally Open contact by MOS FET relay no voltage contact output

Main unit dimensions: 370×159×78.5 mm (W×H×D) not including protruding portion

Weight: Approx. 1650 g (including stand)

Noise level: 63 dB(A) (distance 1m)

Accompanying items: Operation manual, AC adapter, signal output cable, cleaning brush, 2P-3P plug adapter

Optional parts:

Discharge needle unit(DNU-W85), Filters (OBF-F2ZA-1-10:package of 10)

Datasheet
