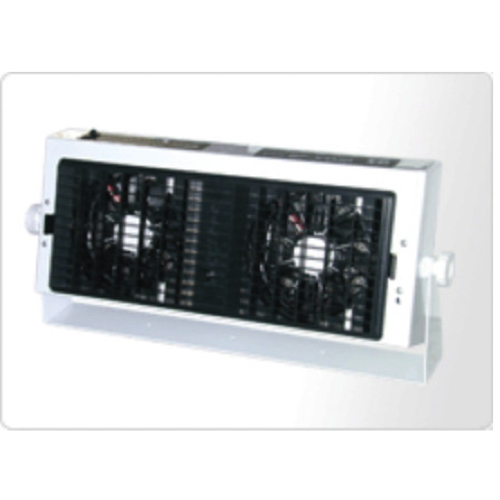

Shishido BF-X4ME Static Eliminator Blower WINSTAT (25 VA(Maximum Fan speed))

Input Power: DC24V (AC adaptor AC100~240V)

Capacity: 25 VA(Maximum Fan speed)

Output Voltage: ±7,500 V0-p

Ion Balance: Below ±5 V(Distance at 300mm:initial setting)

Air Volume: 1.4 ~ 3.2 m3 / min ×2 fans

Air Speed: 1.6 ~ 3.3 m/sec(at 300mm center)

Ozone Level: Below 0.006 ppm(Distance at 150mm)

Environment: Temperature 0 ~ 40℃, 15 ~ 85%RH (No condensation)

Filter: Pre-filter level

Alarm Output: MOS FET Relay no-voltage b contact output(Abnormal HV or fan)

Dimensions: 370×159×78.5 mm (W×H×D) Without Stand

Weight: around 1600g(With Stand)

Noise: 68dB (A) (Distance at 1m )

Accessories: Manual, AC Adaptor, Signal output cable(2)

Option

Emitter Needle unit :DNU-W85

Filters (10/package):OBF-F2ZA-1-10

Front louver :OBF-L300TA4

Datasheet
