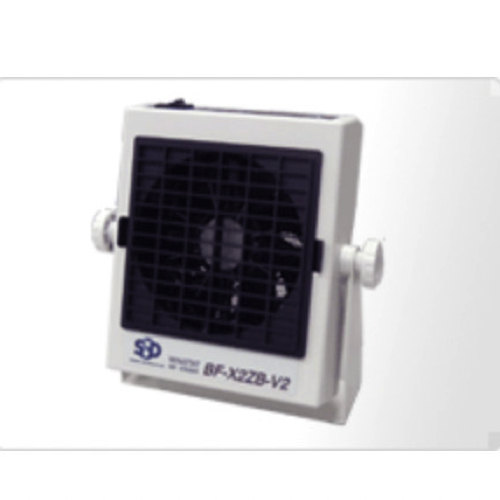

Shishido BF-X2ZB-V2 Static Eliminator Blower WINSTAT (10VA)

Input power supply: DC24 V (with AC100 to 240 V AC adapter)

Electric consumption: 10 VA

Output voltage: AC 3,000 V

Ion balance: ±10 V or less (distance 300 mm; when shipped from the factory)

Airflow: 1.6 to 3.3 m3 / min

Air speed: 1.9 to 3.2 m / sec (straight louver, distance 300 mm; centered)

0.7 to 0.9m / sec (wide-angle louver, distance 300 mm; centered)

Ozone density: 0.04 ppm or less (distance 150 mm)

Operating Environment: 0 to 40℃ / 15 to 65% RH (no condensation)

Output signal: Normally Close contact by MOS FET relay no voltage contact output

Abnormal high voltage (Red LED with ALARM)

Main unit dimensions: 150×182×68 mm (W×H×D) not including protruding portion

Weight: Approx. 820 g (with Bracket)

Noise level: 57 dB(A) (distance 1m)

Accompanying items: Operation manual, AC adapter, wide-angle louver, signal output cable, cleaning brush

Optional parts:

Discharge needle unit(DNU-W85), Filters (OBF-F2ZA-1-10:package of 10)

Datasheet
