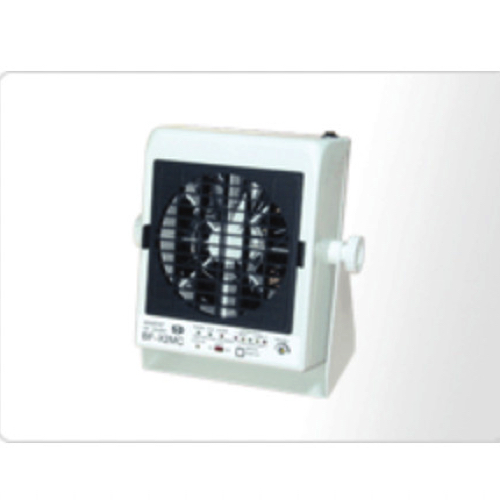

Shishido BF-X2MC Static Eliminator Blower WINSTAT (18 VA)

Input Power: DC24V (AC adaptor AC100~240V available)

Capacity: 18 VA

Output voltage: ±7,500 V0-p

Ion Balance: Below ±5 V(Distance at 300mm: initial setting)

Air Volume: 1.4 ～ 3.2 m3 / min

Air Speed:

1.8 ～ 3.6 m/sec(With Straight Louver Distance 300mm center)

0.4 ～ 0.6 m/sec(With Wide angle Louver Distance 300mm center)

Ozone Level: Below 0.004 ppm(Distance at 150mm)

Environment: Indoor use, 0 ～ 40℃, 15~85%RH (No Condensation)

Filter: Pre-filter level

Alarm Output: MOS FET Relay Non-voltage b contact output

(H.V.,Fan, Cleaning Brush and Abnormal Ion Balance)

Dimensions: 150×182×91 mm (W×H×D) Without Stand

Weight: around 1,2kg (With Stand)

Noise: 59dB (A) (Distance 1m))

Accessories: Manual, AC Adaptor, Straight Louver (OBF-L120S), Wide angle louver(OBF-L120W), Signal output cable

Optional Part: Filter(10 pcs): OBF-F2M A-1-10
