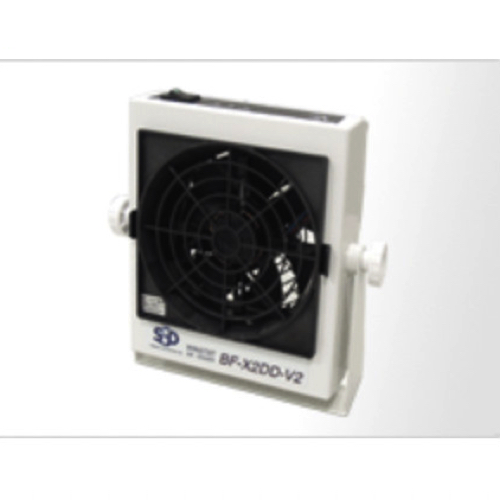

Shishido BF-X2DD-V2 Static Eliminator Blower WINSTAT (15VA)

Input Power: DC24V (AC adaptor AC100~240V available)

Capacity: 15 VA

Output voltage: DC ±7,500 V

Ion Balance: Below ±15 V(Distance at 300mm: initial setting)

Decay Time: Below 0.6 second(Distance at 300mm: Max. fan speed: initial setting)

Air Speed: 1.0 ～ 2.2 m/sec(Distance 300mm center)

Ozone Level: Below 0.007 ppm(Distance at 150mm)

Environment: Temperture: 0 ～ 40℃, Humidity: 15 ～ 85%RH(No Condensation)

Filter: Not Available

Display: Green: Power Indicator(POWER), Yellow: Cleaning Check(C.C.)

Red: Power Abnomal(ALARM)

Abnormal Output: NPN Photo Relay output (Power Abnormal or Cleaning Check)

Dimension: 150×182×62 mm (W×H×D) Without Stand

Weight: Around 900g (With Stand)

Noise: 62dB (A) (Distance 1m))

Accessories: Manual, AC Adaptor, Wide Angle Louver (OBF-LD120W), Signal ouput cable(2/set), Cleaning Brush

Option: Emitter Needle (4/set ): DN-W16
