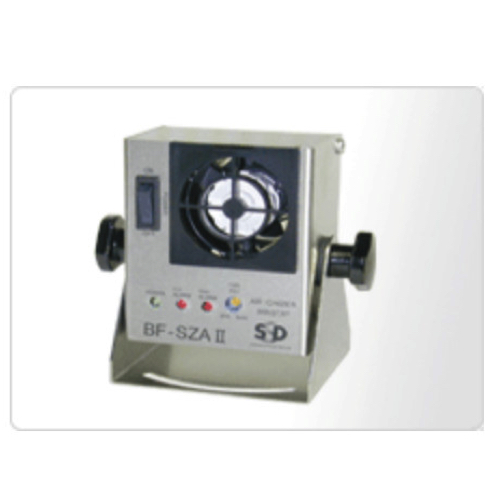

Shishido BF-SZAⅡ Static Eliminator Blower WINSTAT (5 VA)

Input power supply: 24 VDC±5% (AC adaptor is not included)

Capacity: 5 VA

Output voltage: 2.5 kVAC

Ion balance: ±10 V or less

Airflow: 0.2~0.30 m3 / min

Ozone density: 0.04 ppm or less (Distance at 150mm)

Operating Environment: 0 to 40℃ / 15 to 65% RH (no condensation)

Filer: No filter

Main unit dimensions: 70×81×45 mm (W×H×D) only body size

Weight: 370 g (with Bracket)

Noise level: 48 dB (A) (at 1m distance)

Alarm output: Normal: ON, Abnormal (HV alarm or fan alarm with Red LED light): OFF

MOS FET Relay, Normally Closed contact.

Maximum current: 200mA, Voltage: Below 30VDC.

Accessories: Manual, Signal output cable(2m), Cleaning Brush.

Optional Parts:

AC Adaptor (OBF-24V-AD-SZAⅡ) AC100~240V available

Discharge Emitter unit :DNU-W29
