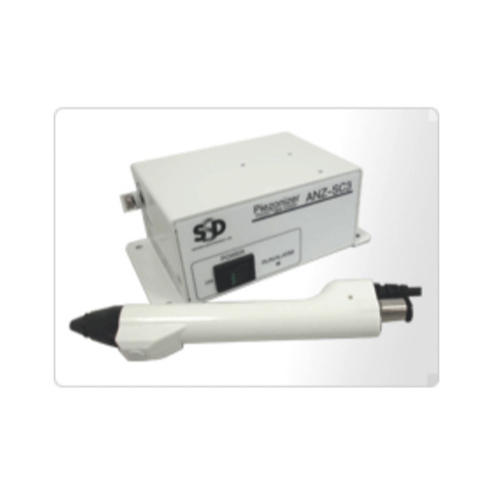

Shishido ANZ-SC3 Pencil Type Ionizer (0.05 đến 0.6 MPa)

Input Voltage: DC24V (with AC adapter for AC100 to 240V)

Indication: Green:Normal condition

Red:Abnormal condition

Buzzer Alarm: When H.V. is abnormal, the buzzer is on.

Abnormal signal output: Contact output under abnormal condition

(MOS FET Realay Normally close , DC30V less 100mA)

Ion Balance: Under ±15V

Ozone density: Under 0.04ppm (Distance at150mm from the nozzle hole)

Air Supply: Clean and Dry air

Air pressure range: 0.05 to 0.6 MPa(with Speed Controller)

Air consumption: Maximum 190 ℓ/min(ANR)

Air blow: CONT : Continuously blow

PULSE Hi : High Speed Pulse(10Hz)

PULSE Lo : Low Speed Pulse(5Hz) *7

Enviroment: 0 to 40℃

15 to 65%RH(without Condensation)

Dimensions: ANZ body : 18 dia ×154L(mm)

Controlbox : 135W×50H×75D(mm)

Weight: ANZ body : 95g

Controlbox : 570g

Accessories: ANZ body, Controlbox, AC adaptor, Grounding cable, Holder(4 pcs), contactpin(5 pcs), air tubing, manual

Option: Emitter needle : DN-W17

Air Pressure Guage

Nozzle Application: Same as ZappⅡ

*7: The life time of electric valve in the controller is below 50 million times.

Datasheet
